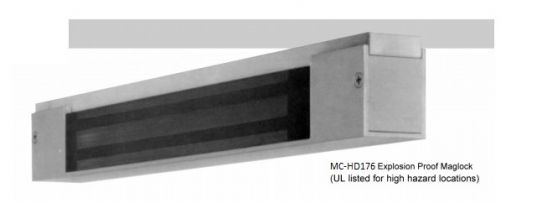

MC-HD176 Explosion Proof UL listed maglock, 600lbs **DISCONTINUED**
$1,610.00
$2,300.00
**DISCONTINUED ITEM, SEE RELATED PRODUCTS BELOW FOR POTENTIAL REPLACEMENTS**
Product Overview
UL listed explosion proof magnetic lock for use in Class 1 Div 2 All Groups A, B, C, D environments.
Standard Features
- UL Certified for Class 1 Div 2 All Groups A, B, C, D Environment
- Only Singles Available (use two for double door applications)
- Built-In Spike or Surge Suppressions
- Satin Anodized Aluminum Finish
- Functionality for utilization as a door contact switch - Form "C" contact
- The only UL (Underwriters Labs) approved explosion proof maglock *
Technical Specifications
- Holding Force 600lbs at 24VDC OR 324lbs at 12VDC)
- 0.25Amps - 24VDC, (0.50Amps - 12VDC)
- Approx. size 10 1/2 inches x 2 inches x 2 inches
Models
- MC-HD176 24: single maglock for outswing doors, push side mount. 24VDC
- MC-HDZB176 24: single maglock for inswing doors, pull side mount. 24VDC
*must be specific for UL Certification. Inswing maglocks come with the required inswing bracket assembly.
**Specialized Equipment** Contact us at 1-866-500-5625 with any questions prior to purchase.
Please allow at least 2 weeks build time.
Also Known As:
MC-HD176-24, MC-HDZB176-24, E-HDZB176/24Finish:
AluminumManufacturer:
Maglocks.comModel Number:
MC-176Power Requirements:
24VDCStatus Monitor:
Standard
2 Questions asked on MC-HD176 Explosion Proof UL listed maglock, 600lbs **DISCONTINUED** •
Q
Mark Butters • 01/18/2021, 1:21:01 PM
Is this magnetic lock, energized to lock or deenergized to lock?
A
01/19/2021, 2:26:22 PM
The magnetic lock will require power to energize (lock), when all power is lost it will automatically unlock. This is also referred to as fail-safe operation.
Q
michael claerhout • 02/12/2021, 3:59:59 PM
can we get this for a 120v power?
A
02/15/2021, 11:15:21 AM
The MC-176 magnetic lock is designed for 24VDC input power only. Please see our "Related Products" section for low-voltage power supply options that would convert 120VAC input into 24VDC output. For further assistance with this product you can also reach us by phone at 1-866-500-5625
