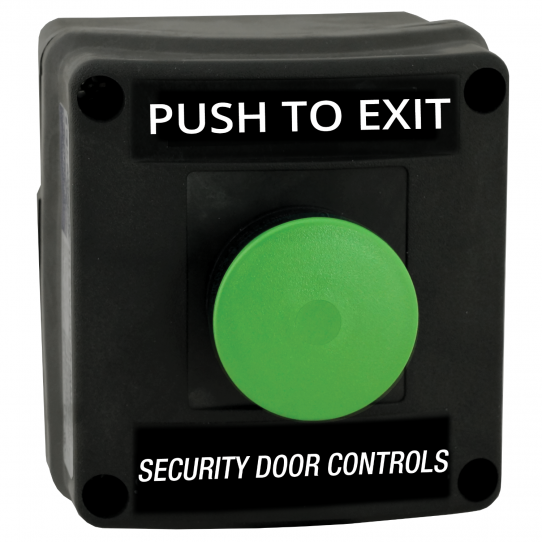

SDC EP499 Explosion Proof Exit Switch
Processing...

SDC EP499 Explosion Proof Exit Switch

$2,018.75 $2,375.00

Overview

Specifically designed for applications where flammable vapors are cause for concern, like clean room, chemical plant, or refinery environments by eliminating the sparks or arc in the exit switch. For use in hazardous and corrosive environments.

More Info +


Green button is standard, Red is special build-to-order:

Qty

Product Details

Product Overview

Specifically designed for applications where flammable vapors are cause for concern, like clean room, chemical plant, or refinery environments by eliminating the sparks or arc in the exit switch. For use in hazardous and corrosive environments.

Models

EP499 - Explosion Proof Exit Button

Features

•  Impact Resistant Non-Metalic Antistatic Material
•  No Moving parts, virtually maintenance free
•  Corrosion Proof with F1 UV Protection
•  1.5" Mushroom Button (Green or Red)
•  Silicone Gasket on Enclosure and Actuator
•  Explosion Protected Contact Blocks
•  Clearance for 3/4" Bottom Feed NPT Fitting

Ratings

Class I, Zone 1, AEx de IIC T6...T4 Gb / Ex de IIC T6...T4 Gb X Zone 21, AEx tb IIC T85°C...T135°C Db IP66 / Ex tb IIC T85°C...T135°C Db IP66 X
Class I, Division 2, Groups A, B, C, D
Class II, Division 2, Groups E, F, G
Class III

UL50, 50E, 508, UL60079-0, -1, -7, -31
Type 3, 4, 4X, 12, 13

Specifications

Dimensions: 3.95 W x 4.21 H x 4.16" D
Temperature:  -50 Deg C to 60 Deg C
Switch Contacts: (1) N.O. and (1) N.C., momentary


Maglocks.com Rating
Best
Manufacturer
SDC Security
Manufacturer Warranty
5 Year
Power Requirements
24VDC/12VDC
