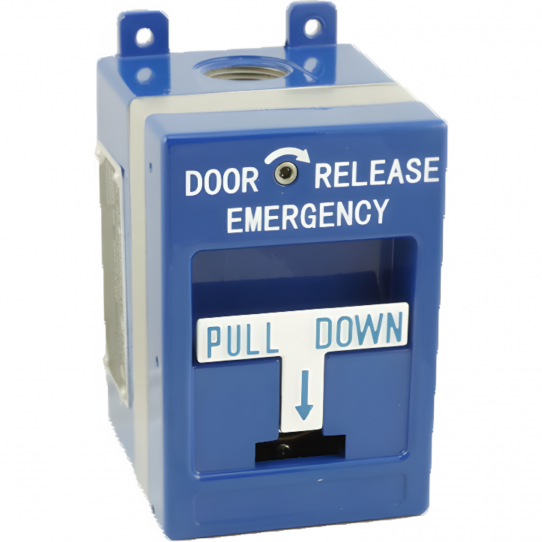

SDC EP493 Explosion Proof Pull Station

Product Overview

Explosion-Proof / Weather-Proof Pull Station for Emergency Door Release. Specifically designed for applications where flammable vapors are cause for concern, like clean room, chemical plate, or refinery environments.

UL Listed

• UL listed for use in hazardous locations:
• CLASS I, Division 1, Group B, C, D
• CLASS II, Division 1, Group E, F, G
• Class III
• Type 4X outdoor

Applications

• Chemical Plants
• Refineries
• Paint Shops
• Cleaning Facilities
• Loading Facilities for flammable gases

Product Features

• High-Strength Metal Die-Cast Alloy
• Terminal Block Connection
• DPDT switch rated @ 10amp

Models

• EP493 - Explosion Proof Pull Station, Weatherproof Pull Station

Specifications

• Current: 10amp @ 125/250 VAC
• Contacts: DPDT
• Wire AWG: 12 to 22 AWG
