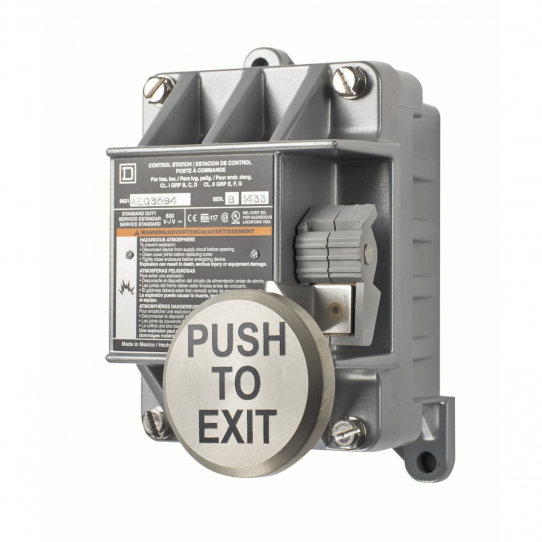

EXP-1, EXP-2 Explosion-proof Button for Hazardous Locations

$1,777.35 $2,091.00

Overview

Features:

  • Heavy Cast NEMA Type 7 Enclosure
  • Conforms to Class I, Divison I and II Group B, C, D, E, F, and G
  • 2 inch Dia. Pushbutton "Push to Exit" Black Epoxy Ink
  • Select Momentary or Latching Contacts
  • One NO and one NC contact
  • Contacts rated 5A @ 35VDC or 120VDC
  • Size 4 inch X 6.5 inch x 4.5 inch
  • Pipe Thread 1/2-14 NPT
  • UL Listed and CSA Approved

More Info +


Select Model:

Qty

Product Details

Features

  • Heavy Cast NEMA Type 7 Enclosure
  • Designed for hazardous locations
  • Conforms to Class I, DIV. I and II, Group B, C, D, E, F and G
  • 2 inch diameter push button silkscreened with black epoxy ink
  • One normally-open and one normally-closed contact
  • Contacts rated 5A @ 35VDC or 120VAC
  • Pipe threat 1/2-14 NPT
  • UL and ULC approved for hazardous locations
  • Push buttons can be customized
  • Select Momentary or Latching Contacts
  • Size 4 inch X 6.5 inch x 4.5 inch
  • Pipe Thread 1/2-14 NPT
  • UL Listed and CSA Approved

Model

  • EXP1 - Momentary Contacts, "Push to Exit
  • EXP2 - Latching Contacts, "Push to Exit"
Also Known As
EXP-1, EXP-2, EXP1, EXP2, ALA300EXP1, ALA300EXP2
Manufacturer
Alarm Controls
Model Number
EXP
Mount
Surface Mount
Operation Momentary Timer Maintained
Momentary,Alternate Action
Power Requirements
24V/12V AC/DC
Type
Explosion-proof
UPC Code
604840210010
