SDC EP17624 Series Explosion Proof Magnetic Lock

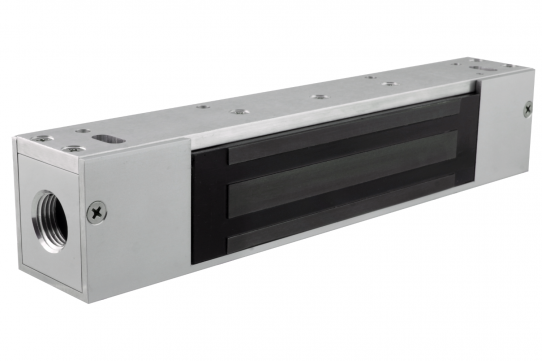

EP17624 EMLock Series, Explosion Proof Magnetic Lock

Product Overview

Specifically designed for applications where flammable vapors are cause for concern, like clean room, chemical plant, or refinery environments by eliminating the sparks or arc in the magnetic lock.

Product Features

• Explosion Proof Epoxy Sealed to eliminate sparks
• No moving parts, virtually maintenance free
• Corrosion Proof
• Door Status Sensor (SPDT)
• 628 Clear Anodized Aluminum housing
• Classified for Class 1, Division 2 Hazardous Locations

Applications

• Chemical Plants
• Refineries
• Paint Shops
• Cleaning Facilities
• Loading Facilities for flammable gases

Models

• EP17624 - Push-side Explosion Proof Em-Lock with conduit on side-block
• EP17624TJ - Pull-side Explosion Proof EM-Lock with conduit on top panel (includes Top Jamb mounting bracket)

Ratings

• UL listed for use in hazardous locations CLASS 1, DIVISION 2

This unit is intended to be used in the following atmospheres: Acetone, Ammonium Hydroxide, ATSM fuel C, Benzene, Methyl ethyl ketone, Diethyl-Ether, 2-Nitropropane, Ethyl-Acetate, Furfural, Normal Hexane, Methyl Alcohol

Operating temperature for the magnetic lock will not exceed 185° F (85° C). Maximum ambient temperature is not to exceed 104° F (40° C). For supply connections, use a suitable wire with a minimum insulation temperature rating of 167° F (75° C).

This unit must be connected to a NEC (National Electric Code, NFPA 70) Class 2 Supply Circuit rated for 24 VDC with a minimum current output of 0.5amp and output power of 12 watts. A UL Listed SDC 600 Series Power Controller is recommended.

See UL Listed 602RF Power Supply below in related products

Specifications

• Model: EP17624 Series Explosion Proof EMLock
• Manufacturer: SDC
• Holding Force: 600 lbs
• Voltage: 24 VDC only
• Current Draw: 250 mA at 24 VDC
• Magnet Size (EP17624): 10.5 inches L x 2 inches H x 1.75 inches D
• Magnet Size (EP17624TJ): 10.5 inches L x 2.25 inches H x 1.75 inches D
• Armature Size: 7.125 inches L x 1.75 inches H x 0.75 inch D
• Door Status Sensor: SPDT
• Finish: 628 clear anodized aluminum housing
• Hazardous Location Rating: UL listed, Class 1, Division 2
• Operating Temperature: Magnetic lock will not exceed 185° F (85° C); maximum ambient temperature 104° F (40° C)
• Supply Wire: Minimum insulation rating 167° F (75° C)
• Power Supply: NEC Class 2 circuit rated 24 VDC, minimum 0.5 A and 12 W output (UL Listed SDC 600 Series Power Controller recommended)
• Construction: Epoxy sealed; no moving parts
• Models: EP17624 (push side, conduit on side block); EP17624TJ (pull side, conduit on top panel, includes top jamb bracket)
