Complete Single Door Magnetic Lock kit
$665.21
Product Overview
Single door access control system includes a magnetic lock (600lbs or 1200lbs), PIN/Prox reader for entry, Request to Exit devices and Power Supply with battery backup.
The remote release button can be wired to allow door release from almost anywhere in the building.
Power supply with battery backup ensures your door remains secure and all system components remain operational in the event of a power failure.
Features
- PIN, Prox card or PIN + Prox card entry
- 2000 user capacity
- All programming is done through the keypad
- 1 form C relay
- Electronics are epoxy sealed, IP68 rated (will accept PIN codes and Prox cards while completely submerged in up to 1 meter of water)
- Metal vandel resistant construction, includes security screws and built in anti-tamper alarm
- 5 PCS-1 Prox cards included with keypad purchase
Specifications
- Single Gang Keypad Dimensions: 4-3/4 inches L x 3-1/8 inches W x 1 inch D
- Narrow Keypad Dimensions: 4-3/4 inches L x 2-1/4 inches W x 7/8 inches D
- LK-M06L Lock Dimensions: 9.84 inches L x 1.86 inches H x 1.05 inches D
- LK-M12L Lock Dimensions: 10.47 inches L x 2.87 inches H x 1.57 inches D
- Power Supply Specifications: 1.2amp at 12VDC
- Estimated Battery Backup Life (PS1250) with single maglock system: 7 1/2 hours

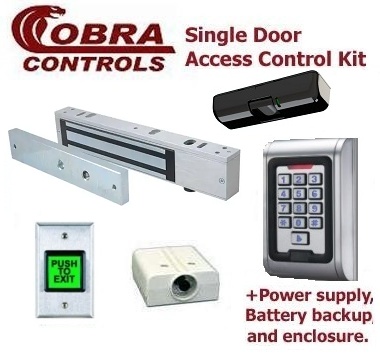

Single Door Kit Includes
- 1 each CC-3800EM Weather Proof, Indoor/Outdoor, Digital keypad + proximity reader
- 5 each PCS-1 proximity cards
- 1 each magnetic lock (select)
- 1 each PS-530E Request to exit motion detector (select)
- 1 each TS-2 Request to exit pushbutton
- 1 each HUB-2SA under desk mount remote release button
- 1 each MC-1 12VDC 1.2 amp power supply and metal enclosure
- 1 each SLA1055 12VDC backup battery (included with MC-1 power supply)

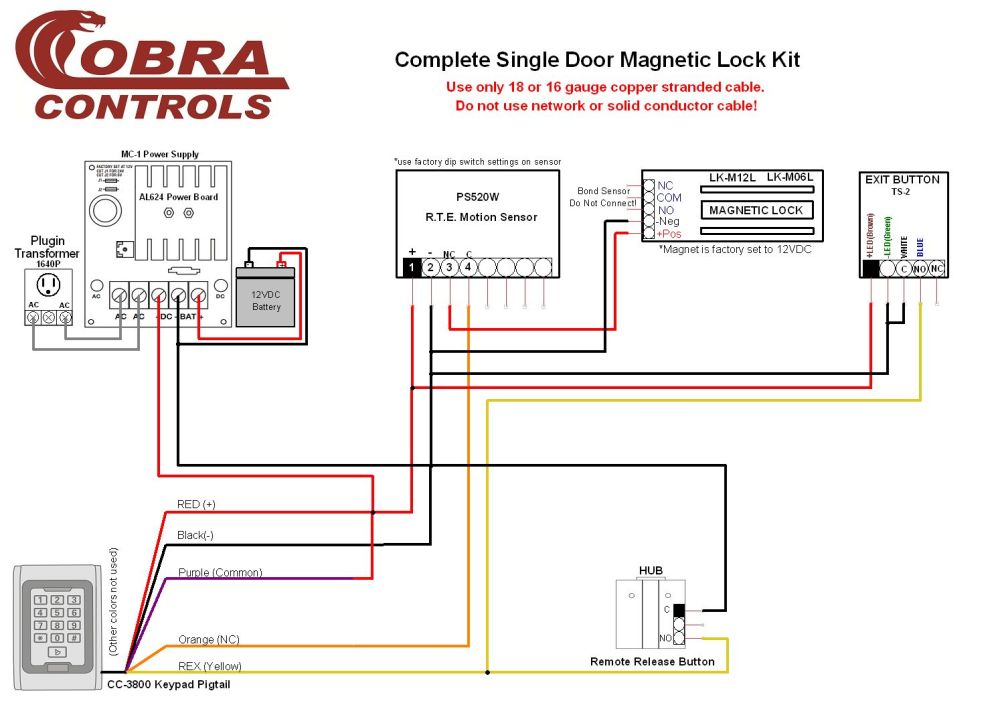

- 1 each Complete wiring diagram and 100% free over the phone tech support!!
For assistance with this kit please use the Live Chat feature or Call us Toll Free at 1-866-500-5625
Also Known As:
single door magnetic lock kit, Complete Door magnetic lock kitManufacturer:
Maglocks.comManufacturer Warranty:
2 YearModel Number:
single door maglock kitPower Requirements:
12VDC
7 Questions asked on Complete Single Door Magnetic Lock kit •
Q
Kerry Richards • 10/31/2019, 3:39:22 PM
Hi,
This looks like the perfect solution for a small office building with two out swing doors.
The parts list for the kit states that the MC-1 power supply includes a backup battery. We need the MC-2 power supply for two doors. Does the MC-2 include a back up battery?
We also need the programmable timer. How is the timer programmed?
Can an existing (indoor) hardwired handicap door open button be wired through the system to turn off the lock when the handicap door opener is used?
A
11/04/2019, 4:13:03 PM
Yes, the MC-2 option for double doors would also include a backup battery.
The programmable timer is easily programmed using the buttons and screen on the timer. See part# (ETM-17-12)
In most cases we can interface this kit with an automated door opener system, please give us a call to go over the specifics 518-843-3322
Q
Travis Parsons • 11/18/2020, 3:57:43 PM
Is it possible to get more than 5 cards? How many cards could I get?
A
11/19/2020, 3:28:59 PM
Yes, additional Cards & Keytags can be found under the "Related Products" section at the bottom of the kit page. The CC-3800 unit included with this kit can hold up to a maximum of 2000 users. For any additional assistance with this kit feel free to give us a call at 1-866-500-5625
