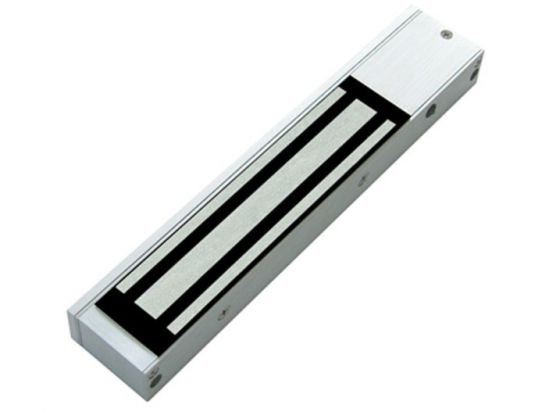

CM600CD Maglock, 600lbs, Standard Bond, Door Status Sensor
Processing...

CM600CD Maglock, 600lbs, Standard Bond, Door Status Sensor

$124.00

Overview

While the smart and shear maglocks are extremely advanced the standard maglocks have not changed very much over the past 20 years. This consistency has allowed manufacturers to focus on such things as lowering power consumption while providing higher holding forces.

CM600CD comes standard with bond sensor and door position sensor.  Includes armature plate and installation hardware.

Recommended for:
• Interior doors
• Slim Profile for Narrow Door Frames
• Low to Medium Security Applications
• Computerized Access Control Systems
• Interlock systems

More Info +


Options

Qty

Product Details

Product Overview

While the smart and shear maglocks are extremely advanced the standard maglocks have not changed very much over the past 20 years. This consistency has allowed manufacturers to focus on such things as lowering power consumption while providing higher holding forces.

Standard Features

  • Armature Plate and install hardware included
  • Silent Operation
  • Long Lasting Performance
  • Dual Voltage: 12/24VDC - Field Selectable
  • Compatible with any Access Control System
  • Bond Status Sensor
  • Door Status Sensor

Technical Specifications

  • Magnet Size: 9.84 inch L x 1.85 inch H x 0.98 inch D
  • Armature Size: 7.25 inch L x 1.50 inch H x 0.50 inch D
  • Current Draw: 500mA @ 12VDC, 250mA @ 24VDC
  • Weight: 5 lbs.

Finishes

  • Stainless Steel
Finish
Aluminum
Maglocks.com Rating
Good
Manufacturer
elocksolutions
Manufacturer Warranty
2 Year
Model Number
CM600CD
Power Requirements
24VDC/12VDC
Status Monitor
Standard
