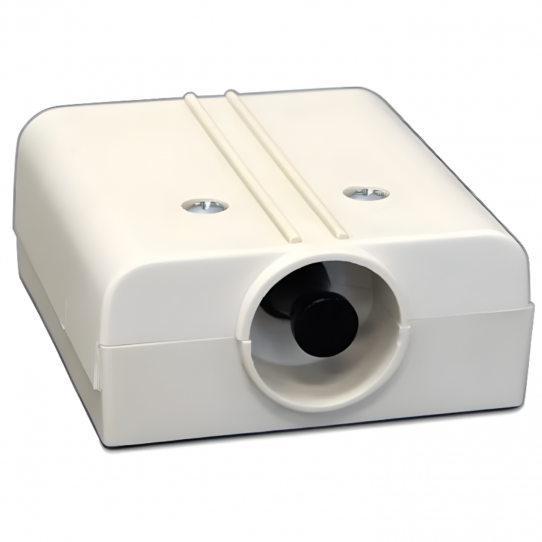

United Security HUB2SA Hold-up Button, Momentary SPDT, 3 Screw Terminals

$39.45

The industry standard in high quality Hold-Up Buttons. The switch inside the case is manufactured with gold, silver and copper. Made with the highest standard of components and hand-assembled in the USA to assure reliability.

Features

  • Nickel Plated Brass Terminals
  • Impact Resistant Housing
  • Copper Alloy Blades Gold or Silver Crosspoint Contacts
  • Silent Actuating Button
  • UL and ULC Listed
  • Voltage Rating: 125/250
  • Current Rating: 10 Amps
Read More
Model:

United Security HUB™ Brand Hold Up Buttons, have set the standard for quality throughout the industry. The switch is manufactured with gold, silver and copper for maximum conductivity and corrosion resistance, with a current rating of 10 Amps, and a voltage rating of 125/250 volts. Button Locating Ridges are a HUB™ exclusive.

U.S. and World patents pending

HUBs can handle the toughest applications including multiple cameras, recorders, alarms and machinery, as well as Hold Up notification, all simultaneously.

Highlights

  • Recessed button prevents accidental activation, and latching switches have a reset tool included.
  • Use to trigger a silent alarm and activate cameras and equipment, all with the same switch.

Models

  • HUB2SA - SPDT, Momentary operation, Terminal configuration: 3 screw terminals

Features

  • Nickel Plated Brass Terminals
  • Impact Resistant Housing
  • Copper Alloy Blades Gold or Silver Crosspoint Contacts
  • Silent Actuating Button
  • UL and ULC Listed
  • Voltage Rating: 125/250
  • Current Rating: 10 Amps

Also Known As:

US-HUB2SA, HUB

Manufacturer:

United Security Products

Manufacturer Warranty:

2 Year

Model Number:

HUB2A

Mount:

Under-Desk Mount

Operation Momentary Timer Maintained:

Momentary

Power Requirements:

24V/12V AC/DC

UPC Code:

749617032713

Usage:

Interior Use
2 Questions asked on United Security HUB2SA Hold-up Button, Momentary SPDT, 3 Screw Terminals •
Ask a Question
Q Vickie • 10/02/2023, 12:33:15 PM How do you reset the button after it has been engaged?
A 10/02/2023, 12:58:05 PM The HUB2SA is a momentary action switch that is spring loaded. Pressing-in and holding the button will cycle the relay contacts, once the button is released the spring will automatically reset the button & switch contacts to the normal position.
Q Stan • 03/25/2024, 9:08:26 PM Can this be installed outdoors?
A 03/26/2024, 10:55:19 AM These HUB buttons are high-quality/made in the USA pushbuttons but they are not rated for outdoor usage. To discuss your project in further detail and go over some weatherized options please give us a call at 1-866-500-5625
