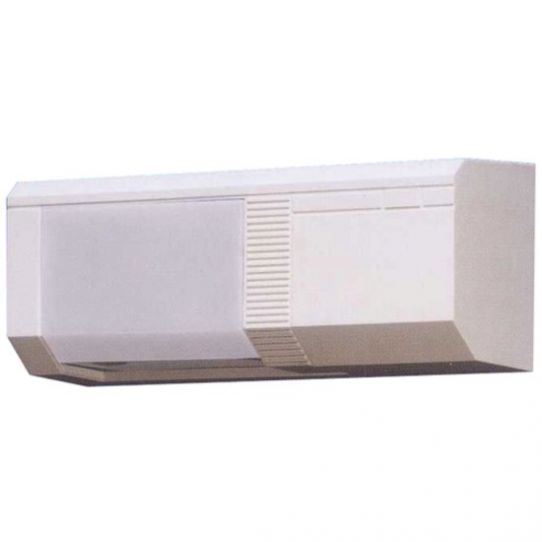

TAKEX PS520W Request to Exit Motion Sensor

$102.00

Overview

Designed for applications involving coverage at the threshold of a doorway, the PULNiX Passive Infrared Sensor detects the differential between a human body and the floor. It features several field selectable options and adjustments to make it the ideal choice for access control applications, door strike release, alarm system shunting and automatic door operation.

More Info +


Qty

Product Details

Product Overview

TAKEX PS520W Request to Exit Motion Sensor, Motion Detector for Magnetic Lock/Electric Strike door release. Fail Safe or Fail Secure UL Listed

Standard Features

  • Single or Double Door Coverage
  • Wall, ceiling, on or under frame (indoor)
  • Adjustable Sensitivity
  • Selectable Fail Safe - Fail Secure by DIP Switch
  • Two Form C Relay Outputs
  • Adjustable Relay Timer, 0.25 seconds to 60 seconds
  • UL Listed

Manufacturer Specifications

  • Detection system: Passive infrared
  • Mounting height: 13 feet (4 meters) Maximum
  • Width area setting: Single (Door) or Double (Door): Selectable Adjustment
  • Wall mount: Vertically 35 degrees (8 steps)
  • Overhead mount: Vertically 20 degrees (5 steps)
  • Supply voltage: 12 to 24VDC (Non polarity) or 12 to 24VAC (50Hz / 60Hz) (When operated at AC20 to 24V, connect attached resistor.)
  • Current consumption: 40mA or less / DC and 70mA or less / AC
  • Contact output: Dry contact relay 2C
  • Operation: One shot
  • Hold time: Adjustable approximately 0.25 seconds to 60 seconds
  • Contact capacity: 30V (DC) 1A or less / 125V (AC) 0.6A or less *Selectable relay operation
  • LED indicator: Green LED
  • Operation: synchronous dry contact relay (LED disabled)
  • Mounting position: Wall, ceiling, on or under frame (indoor)
  • Wiring: Terminals
  • Weight: 5.95 oz (170g)
  • Appearance: COVER (ABS resin): White and WINDOW (PE resin): White
  • Accessory:
    • Tapping screw: 2 pieces
    • Resistor: (82Ω, 3W): 1 piece (connect when operated at AC20 to 24V)
    • Cover locking screw: 1 piece

ENVIRONMENTAL SPECIFICATIONS

  • Ambient temperature: +14°F to +122°F (-10°C to +50°C) without condensation

Finishes

  • White
Also Known As
PS520E, PS520E(W), PS520W, PU-PS520W
Finish
White
Manufacturer
Takex
Manufacturer Warranty
2 Year
Model Number
PS520W
Power Requirements
24V/12V AC/DC
UPC Code
100000901236
