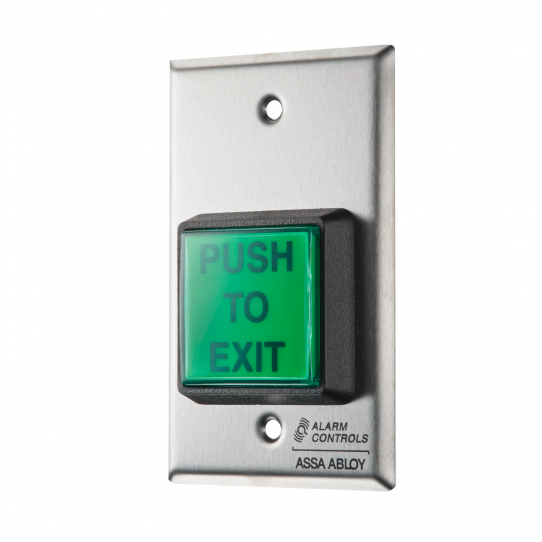

TS-2 Push To Exit Single Gang Mount Button

$62.90 ~~$74.00~~

Overview

The TS-2T request to exit station with electronic timer and square push button, provides a convenient way to keep the door unlocked for a specified amount of time, allowing for easy entry or egress.

The door will relock when the relay time has expired.

Features:

Green 2 inch square pushbutton
Button labeled PUSH TO EXIT, Illuminated
SPDT, Momentary action switch
UL Listed
Made in USA

Product Description

The TS-2 request to exit station with electronic timer and square push button, provides a convenient way to keep the door unlocked for a specified amount of time, allowing for easy entry or egress.

The door will relock when the relay time has expired.

Features

Green 2 inch square pushbutton
Button labeled PUSH TO EXIT
Momentary action switch
Contacts rated 2A @ 35 VDC or 120 VAC
Switch terminated with colored leads
Switch mounted on single gang 430 Stainless Steel wallplate
2 1/2 inch switch depth behind wallplate
Illuminated with Hi-brightness LED
Operates on 12V or 24V AC or DC

Model

Same as TS2, SPN4633, SPN-4633
Replaces discontinued CPB2, CPB-2

Certification

U.L. listed, File Number SA32686
Conforms to U.L. standard 294 for Access Control
Made in the USA

Specifications

Single gang stainless steel wall plate
2 inch green, square push button
Labeled PUSH TO EXIT
Momentary action switch
Contacts rated 10A @ 35VDC or 120VAC
Switch terminated with colored leads
2-1/2 inch switch depth behind plate
Illuminated with hi-brightness LED
UL 294 listed

Also Known As

TS-2, TS2, ALA300TS2, TS-2T, SPN4633, SPN-4633

Manufacturer

Alarm Controls

Manufacturer Warranty

1 Year

Model Number

TS-2

Mount

Single Gang

Operation Momentary Timer Maintained

Momentary

Power Requirements

24V/12V AC/DC

Type

Basic

UPC Code

818256649702

Datasheet PDF

Installation PDF

Installation PDF with Photo

2 Questions asked on TS-2 Push To Exit Single Gang Mount Button • Ask a Question

Q J B • 06/10/2021, 4:35:52 PM How do you wire

A 06/11/2021, 11:40:15 AM This button uses a Form C Relay (COM, NO, NC) with a momentary action switch. Typically this button is used to Trigger an input on another piece of Access Control equipment but there are many possible usages. For more assistance with this button or to get started on a complete system quote, please give us a call at 1-866-500-5625

Q Phanindran • 05/11/2022, 11:13:02 AM What is the Dimensions of the TS-2 TS-2 Push To Exit Single Gang Mount Button for installation

A 05/12/2022, 11:16:15 AM The TS-2 button is mounted on a standard Single Gang (4-1/2" L x 2-3/4" W) plate. The switch assembly depth on the back of the button protrudes roughly 1-1/4" but it would be recommended to have at least 1-1/2" of clearance behind the button to allow for wiring connections.
