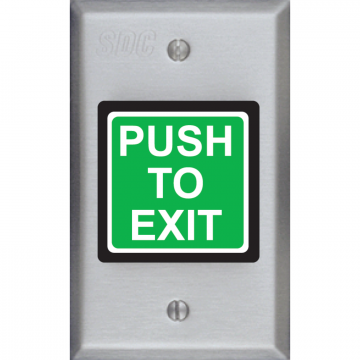

TS-2T Push To Exit Button 2 - 45 second timer

The adjustable 2 to 45 second timer will activate when the switch is depressed. Subsequent depressions of the switch before the end of the time delay setting will re-start the timer

• Green 2-inch square pushbutton
• Button labeled PUSH TO EXIT
• Adjustable 2 to 45 second S.P.D.T (Single Pole Double Throw) timed contacts
• Contacts rated 2A @ 35 VDC
• Switch terminated with colored leads
• Switch mounted on single gang 430 Stainless Steel wallplate
• 2 1/2 inch switch depth behind wallplate
• Illuminated with Hi-brightness LED
• Operates on 12V or 24V AC or DC

Certification

• U.L. listed, File Number SA32686
• Conforms to U.L. standard 294 for Access Control
• Made in USA
