TakeX, PS530E Series Request To Exit Motion Sensors

Product Overview

TAKEX PS530E Series Request to Exit Motion Sensors, Motion Detector for Magnetic Lock/Electric Strike door release. Fail Safe or Fail Secure UL Listed

Standard Features

• Single or Double Door Coverage
• Wall, ceiling, on or under frame (indoor)
• Adjustable Sensitivity
• Selectable Fail Safe - Fail Secure by DIP Switch
• Two Form C Relay Outputs
• Adjustable Relay Time Settings: from 0.5 seconds to 64 seconds
• UL Listed

Manufacturer Specifications

• Detection system: Passive infrared
• Mounting height: 15 feet (4.5 meters) Maximum
• Width area setting: Single (Door) or Double (Door): Selectable Adjustment
• Wall / Ceiling mount: Vertically 30 degrees (7 steps)
• Supply voltage: 12 to 24VDC (Non polarity) or 12 to 24VAC (50Hz / 60Hz)
• Current consumption: 40mA or less / DC and 70mA or less / AC
• Contact output: Dry contact relay 2C
• Operation: One shot
• Hold time: Adjustable approximately 0.25 seconds to 60 seconds
• Contact capacity: 30V (DC) 1A or less / 24V (AC) 0.6A or less
• LED indicator: Green LED
• Operation: synchronous dry contact relay (LED disabled)
• Mounting position: Wall, ceiling, on or under frame (indoor)
• Wiring: Screwless Terminals
• Weight: 3.5 oz (100g)

SPECIFICATIONS

• Ambient temperature: +14° F to +122° F (-10° C to +50° C) without condensation
• Dimensions: 5.98 inch L x 1.54 inch H x 1.77 inch D

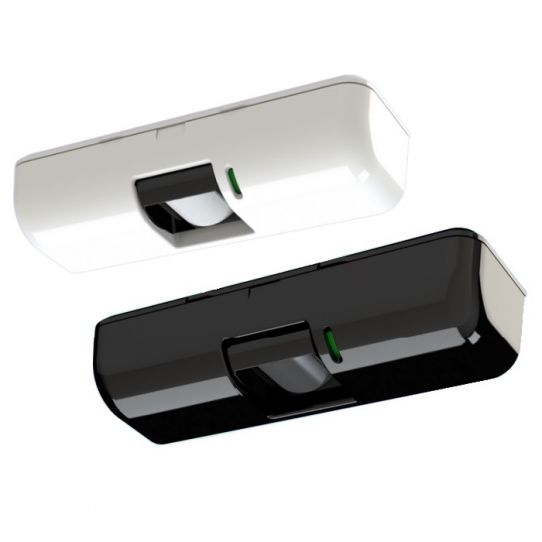

Models

• PS-530E(W): Request to Exit Motion Sensor, White
• PS-530E(BK): Request to Exit Motion Sensor, Black
