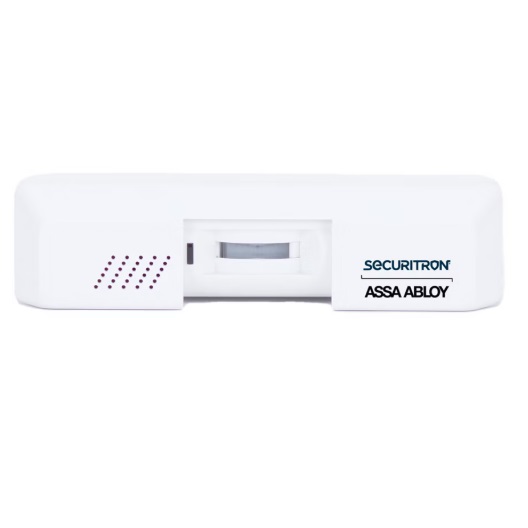

Securitron, XMS2 Passive Infrared Motion Sensor Request to Exit Device

Product Overview

The XMS2 is a passive infrared motion detector specifically designed to release a magnetic lock from the inside of an opening for free egress. Unlike burglar alarm type detectors, the XMS2 has special features appropriate to this use.

The lock control function is fail safe so that the magnetic lock will safely release if power is cut to the detector.

Tight control of the exit detection pattern allows maximum security from the outside and avoidance of inadvertent activation from the inside.

Standard Features

• Passive Infrared Request to Exit Device
• Designed to reliably release magnetic locks
• Automatically cuts power to the lock, allowing the individual to exit without even realizing that the door is secured
• Request to Exit (REX) output
• Easily adjustable beam pattern
• Adjustable time relock
• UL294 Listed

Specifications

• Model: XMS2 Passive Infrared Motion Sensor (request to exit)
• Manufacturer: Securitron
• Detection System: Passive infrared
• Voltage: 12 VDC or 24 VDC
• Power Consumption: 20 mA to 50 mA (depending on switching status) at 12/24 VDC
• Dimensions: 7 inches L x 1-7/8 inches W x 1-3/4 inches H
• Operating Temperature: 32° F to 110° F (0° C to 43° C)
• Use: Indoor use only
• Shipping Weight: 0.5 lbs (0.23 kg)
• Finish: White
• Listing: UL 294 Listed
• Mount: Surface
• Replaces: XMS (discontinued January 17, 2025)
