BOSCH DS161/160 Series Request-to-exit Detectors

Product Overview

The DS161 is a passive-infrared detector designed for request to exit (REX) applications. It is UL Listed as an access control device under the UL 294 standard and is listed for Class I for UL Canada (ULC-S319). For C-UL listed installation applications, the REX shall be connected to ULCS319 listed compatible devices (i.e. control units, power supply and locks). Intended for indoor use only.

Standard Features

• Single or Double Door use
• Wall or ceiling mountable
• Internal vertical pointability
• Wrap-around coverage pattern
• RTE Input R

Technical Specifications

• Alarm output: Two form C relay contacts
• Indicators: One activation LED
• Relay Latch Time: Adjustable to 64 sec.
• Enclosure Dimensions: 6.75 inch x 1.8 inch x 1.75 inch
• Enclosure Material: High impact ABS plastic
• Power Loss Default Mode: Programmable fail-safe or fail-secure modes
• Timer Mode: Programmable reset (accumulative) or non-reset (counting) mode.
• Mounting Location: Surface mount on wall or ceiling
• Operating Temperature: -29°C to +49°C (-20°F to +120°F)

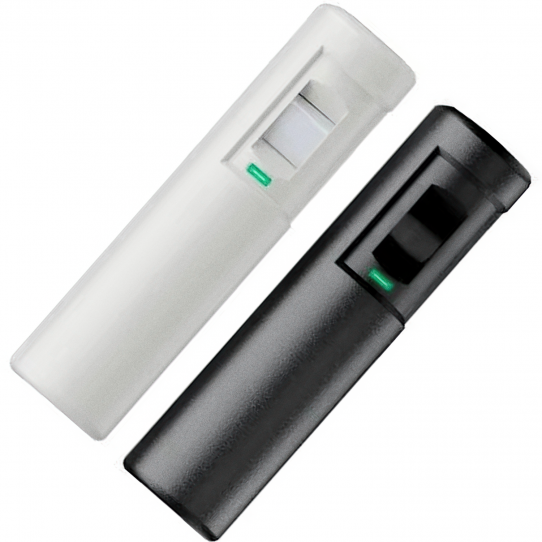

Models

• DS160 - light gray
• DS161 - black

Specifications

• Model: DS160 / DS161 Request-to-Exit Detectors
• Manufacturer: Bosch
• Detection System: Passive infrared
• Models: DS160 (light gray); DS161 (black)
• Voltage: 12 V or 24 V, AC or DC
• Alarm Output: 2 Form C relay contacts
• Relay Latch Time: Adjustable up to 64 seconds
• Fail Mode: Programmable fail safe or fail secure
• Timer Mode: Programmable reset (accumulative) or non-reset (counting)
• Enclosure: 6.75 inches x 1.8 inches x 1.75 inches; high impact ABS
• Operating Temperature: -29° C to +49° C (-20° F to +120° F)
• Mount: Surface mount on wall or ceiling
• Use: Interior use only; single or double door
• Listing: UL 294; ULC-S319 Class I
