SDC 1591 series Mortise EMLock for sliding doors, 850lbs

The 1590 EMLock® is ideal for securing sliding or *swinging, manual or automatic doors. Its durability for high frequency use and its mortise installation make it the choice of specification writers, owners and architects.

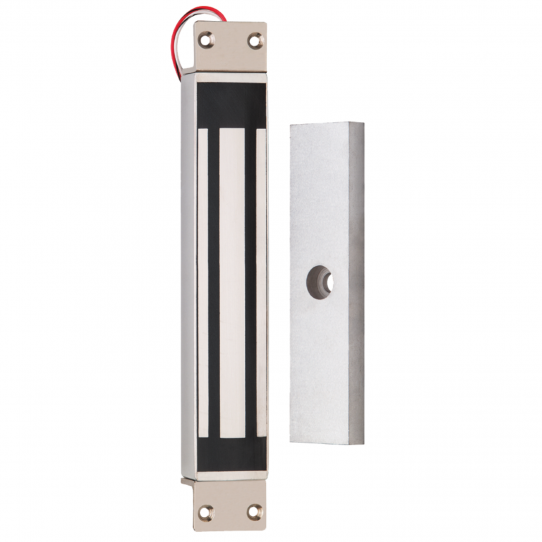

With only two parts, the lock mortised in the frame and the armature in the door, the lock secures the door in a closed position. When power is cut the lock releases instantly.

Standard features include a compact mortise stainless steel case, field selectable dual voltage and voltage/current spike protection.

Models

1591U - Single Mortise EMLock® for sliding doors.

1591UDPS - Single Mortise EMLock® for sliding doors, with built-in DPS (door positon sensor)

(U) indicates standard 630 Stainless Steel finish

Specifications

• Input Voltage: Selectable 12/24 VDC
• 350mA @ 24VDC
• 700mA @ 12VDC
• Mortise Lock Body Dimensions: 10 inches L x 1-7/16 inches H x 1-1/4 inches D
• Armature Dimensions: 6-5/16 inches L x 1-1/2 inches W x 1/2 inches D

Certifications

• UL 1034 Burglary-Resistant Electric Locking Mechanisms
• UL 10B Fire Tests of Door Assemblies
• UL 10C Positive Pressure Fire Tests of Door Assemblies
• ULC-S104 Standard Method for Fire Tests of Door Assemblies
• ULC-S533 Egress Door Seuring and Releasing Devices
• Uniform Building Code Standard 7-2 Fire Test of Door Assemblies (1997)
• ANSI/BHMA A156.23 Grade 1
• Made in the USA

Options

• LAB - Surface mount armature angle bracket for 1591 on sliding doors
• AMP - Armature mounting plate for leading edge of door (reccomended when installing armature plate into wood door)
