SDC 420 Single Gang 2 inch Exit Switch

SDC 420 SINGLE GANG 2 inch EXIT SWITCH

Product Overview

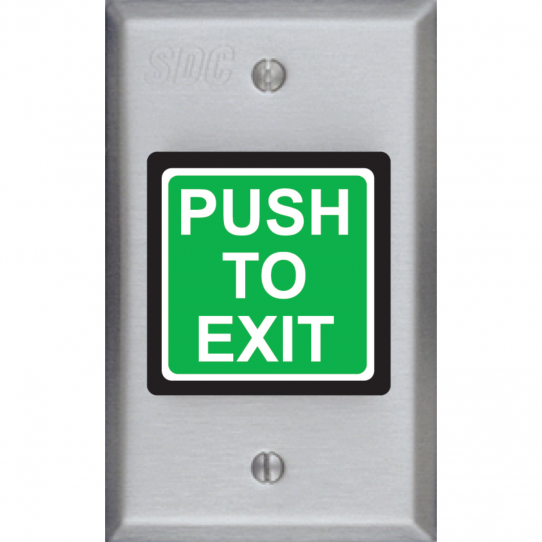

This Exit Switch includes a 2" square button on a 1-Gang wall mount plate with code compliant push switch signage PUSH TO EXIT

Models

• 422 SDC "PUSH TO EXIT" switch, 2 inch square button, MO SPDT, 2A contact 1-gang.
• 424 SDC "PUSH TO EXIT" switch, 2 inch square button, MO DPDT, 2A contact, 1-gang.
• 423 SDC 2 inch "PUSH TO EXIT" switch with integrated electronic timer, adj. 1-60 Seconds. 12/24VDC, 2A DPST Contact, 1-gang.
• 423P SDC 2 inch "PUSH TO EXIT" switch with pneumatic timer, adj. 1-180 sec. 12/24VDC, SPDT 3A Contact, 1-gang.
• 423M SDC failsafe 2 inch "PUSH TO EXIT" switch with integrated fixed and retriggerable 30-second timer, 12/24VDC, 2A DPST Contact, 1-gang.

Specifications

• Input: 12 or 24 VAC/DC
• Dimensions: 2 7/8 inches x 4 1/2 inches x 20 Ga. (73 x 114 x 0.912 mm)
• 2 inch square button 1 gang, 20 gauge faceplate
• Dull stainless steel standard
• 6 inch wire leads

Options

• Green and Red LED Status Indicators (special factory order, call for pricing/availability)
• Special finishes, Chrome, Brass, Bronze, Dark Bronze (special factory order, may add 1-2 weeks for special finish)
