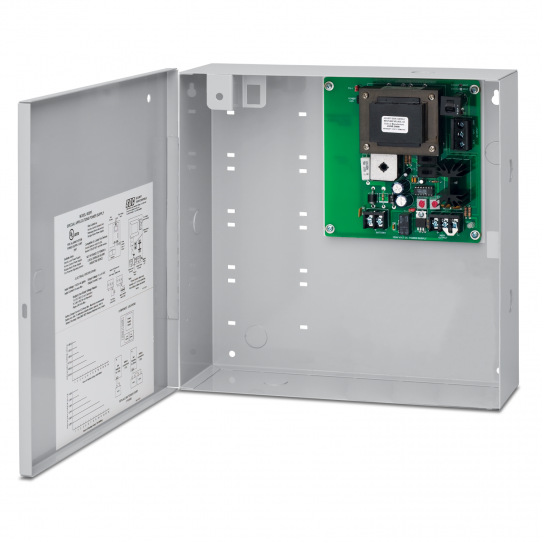

602RF 1A 12 24VDC Power Supply UL294

Product Overview

All SDC power supplies are equipped with a high performance transformer and highly reliable electronic components. Filtering and output voltage regulation provide protection and ensure the longevity of all system components. With the addition of SDC programmable controllers or relay modules, the user-friendly modular designs ensure versatility, interface capability and easy installation of electric locking devices, access controls and related safety equipment.

Features

• Selectable 12/24 VDC output, 1A
• Auto resetting output circuit protection
• Low Battery Disconnect, helps to prevent deep discharge and battery destruction.
• Fire Alarm/Emergency Release Input, provides simultaneous release of all fail safe locks
• ALVY - Access Control Systems Unit (UL294)
• APHV - Power Supplies for Use with Burglar-Alarm Systems
• Made in the USA

Models

• 602RF: Power Supply with metal enclosure
• 602RFPC: Power Supply with metal enclosure with Plug-in power cord

Options

• PC - 6 foot plug-in power cord. Eliminates the need for AC conduit.

Specifications

• Models: 602RF (metal enclosure); 602RFPC (with 6 ft plug-in power cord)
• Output: Selectable 12/24 VDC, 1 A
• Input: 115 VAC, 600 mA, 50/60 Hz, direct wire (optional PC, 6 ft plug-in power cord)
• Protection: Auto-resetting output circuit protection; low battery disconnect
• Fire Alarm/Emergency Release Input: Yes, releases all fail-safe locks at once
• Listings: UL 294 (ALVY); APHV
• Dimensions: 12 in L x 12 in W x 3.75 in D, 20 GA
• Weight: 8.5 lbs
• Batteries: Sold separately
• Origin: Made in the USA
• Warranty: 5 year
