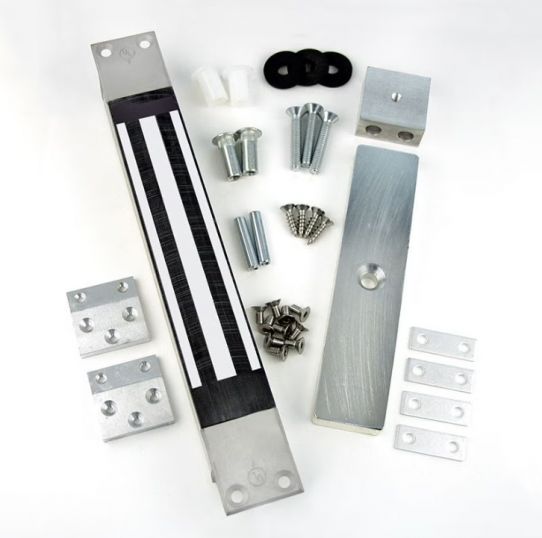

M34R Series Recessed Magnalock, 500lbs

$356.80 $446.00

Overview

500 lbs. holding force Magnalock with automatic dual voltage for mounting in sliding doors. This results in an aesthetically appealing finished appearance. Recommended for applications where physical assault on the door is not expected, like access controlled interior rooms and secure areas within buildings.

Features:

  • Patented instant release circuit - no residual magnetism
  • Recessed for aesthetically appealing finish
  • Fully sealed electronics - tamper proof and weatherproof
  • Architectural brushed stainless steel finish (US32D/630)
  • All ferrous metal surfaces plated to MIL specification
  • Automatic dual voltage - no field adjustment required
  • Ten feet [3.05m] of jacketed, stranded conductor
  • Lock options include BondSTAT magnetic bond sensor and integrated door position switch
  • UL Listed

More Info +


Select Model:

Qty

Product Details

M34R Series Recessed Magnalock, 500lbs

Product Overview

500 lbs. holding force Magnalock with automatic dual voltage for mounting in sliding doors. This results in an aesthetically appealing finished appearance. Recommended for applications where physical assault on the door is not expected, like access controlled interior rooms and secure areas within buildings.

Product Features

  • Patented instant release circuit - no residual magnetism
  • Recessed for aesthetically appealing finish
  • Fully sealed electronics - tamper proof and weatherproof
  • Architectural brushed stainless steel finish (US32D/630)
  • All ferrous metal surfaces plated to MIL specification
  • Automatic dual voltage - no field adjustment required
  • Ten feet [3.05m] of jacketed, stranded conductor
  • Lock options include BondSTAT magnetic bond sensor and integrated door position switch
  • UL Listed

Specification Data

  • Magnet size: 10.55 inch L x 1.5 inch W x 1.125 inch D
  • Armature size: 6.4 inch L x 1.45 inch W x 0.95 inch D
  • Current Draw and Voltage: 320mA at 12VDC; 170mA at 24VDC
  • Operating Temperature: -40 to +140F [-40 to +60C]

Models

  • M34R - Magnalock Model 34, Recessed
  • M34RB - M34, Recessed, Mag Bond Sensor
  • M34RD - M34, Recessed, Door Position Switch
  • M34RBD - M34, Recessed, Mag Bond Sensor, Door Position Switch

Warranty

Also Known As
SEC100M34R, SN-M34R, HES-M34R
Finish
Stainless Steel
Manufacturer
Securitron
Manufacturer Warranty
Lifetime
Model Number
M34
Power Requirements
24VDC/12VDC
Status Monitor
Optional
UPC Code
784607028574
1 Question asked on M34R Series Recessed Magnalock, 500lbs



Q Jeff Broughton • 04/12/2021, 11:11:58 AM I wanted to reach out and see if this mag lock would be a viable option for a project we are working on. We have a hidden door that we would like to have an entry button on the outside to open it. On the inside of the room, we would like an entry and exit button. Is this a viable option, what would the wiring look like, and what pieces would we need in place to achieve this? Thank you!
A 04/15/2021, 12:03:09 PM The M34R is specifically designed for commercial sliding doors. Due to the custom nature of your door, please give us a call so we can go over your project in further detail, 1-866-500-5625. In addition to selecting the correct lock we can then go over entry, exit and power supply options for a complete system.
