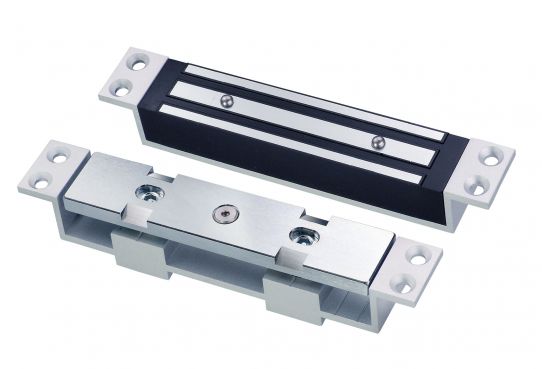

ROFU, 8035 Mini Shear Lock, 1200lbs

ROFU 8035

ROFU’s 8035 Mini Shear Locks are fail-safe, 12/24 VDC selectable magnetic locks.

The magnetic shear locks are compact solutions, designed for dual swinging interior doors and can be installed in horizontal or vertical position.

STANDARD FEATURES

• Dual Voltage 12/24 VDC field selectable
• Maximum gap (between magnet and armature): 2 mm
• Fail-safe: releases instantly when power is disconnected
• Magnet and armature finish: zinc plating
• Designed for dual swinging doors, suitable for narrow frames and glass doors
• Can be installed horizontally or vertically
• No residual magnetism
• UL listed

TECHNICAL SPECIFICATIONS

• Holding Force: 1200lbs
• Voltage: 12/24 VDC
• Current: 420 mA/12 VDC, 210 mA/24 VDC
• Dimensions:
• Magnet: 7-1/16 inches L x 1-3/16 inches W x 1-1/16 inches D
• Armature: 7-1/16 inches L x 1-3/16 inches W x 1-11/16 inches D
• Operating Temperature: -30° C to 50° C (-22° F to 122° F)

MODEL

• 8035 - Mini Shear Lock, 1200lbs holding force
• 8035-002 - Mini Shear Lock, 1200lbs holding force, with Magnetic Bond Status Sensor, SPDT

Specifications

• Model: 8035 Mini Shear Lock
• Manufacturer: ROFU
• Holding Force: 1200 lbs
• Voltage: 12 VDC or 24 VDC (field selectable)
• Current Draw: 420 mA at 12 VDC; 210 mA at 24 VDC
• Magnet Size: 7-1/16 inches L x 1-3/16 inches W x 1-1/16 inches D
• Armature Size: 7-1/16 inches L x 1-3/16 inches W x 1-11/16 inches D
• Maximum Gap (magnet to armature): 2 mm
• Operating Temperature: -22° F to 122° F (-30° C to 50° C)
• Fail Mode: Fail safe
• Finish: Zinc plated magnet and armature
• Use: Interior use only; dual swinging doors, narrow frames and glass doors; horizontal or vertical mounting
• Options: 8035-002 with magnetic bond status sensor (SPDT)
• Listing: UL listed
