SAM2-24 Shear Aligning Magnalock, 600lbs
$610.80
$1,018.00

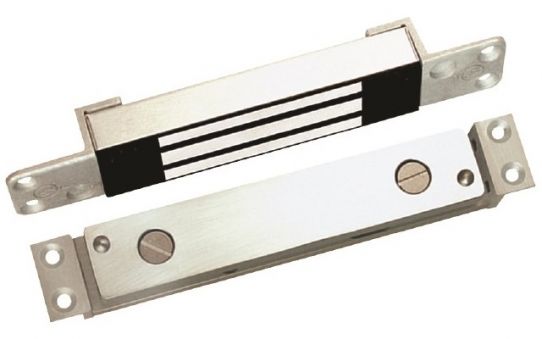

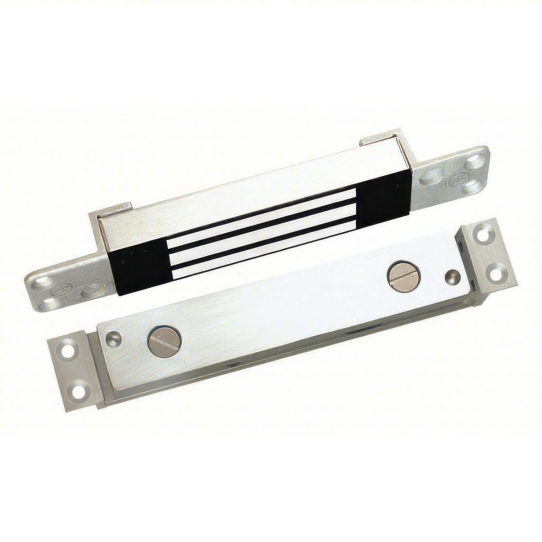

SAM Shear Aligning Magnalock by Securitron, 600lbs
600 lbs. holding force Shear Aligning Magnalock mounts fully concealed and is ideal for smaller applications, like cabinet doors and sliding closet doors. 24VDC only.
The SAM2-24 mounts fully concealed into wood, steel, aluminum or Herculite doors in any position: at the header, door edge or threshold.
Product Features
- Instant release circuit - no residual magnetism
- Fully sealed electronics - tamper proof and weatherproof
- Mounted using steel machine screws
- Architectural brushed stainless steel finish (US32D/630)
- All ferrous metal surfaces plated to MIL specifications
- Six feet [1.8m] of jacketed, stranded conductor
- Smaller dimensions for difficult installation areas
- UL294 Listed
- MagnaCare® lifetime replacement, no fault warranty
Models
- SAM2-24 - SAM2 Magnalock, 24VDC
- SAM2C-24 - SAM2C Magnalock with Magnetic Bond Sensor, 24VDC
Warranty
Specifications
- Model: SAM2-24 Shear Aligning Magnalock
- Manufacturer: Securitron
- Holding Force: 600 lbs (272 kg)
- Voltage: 24 VDC only
- Current Draw: 84 mA at 24 VDC
- Operating Temperature: -40° F to +140° F (-40° C to +60° C)
- Finish: Architectural brushed stainless steel (US32D/630)
- Lead Wire: 6 feet (1.8 m) jacketed, stranded conductor
- Mounting: Fully concealed in wood, steel, aluminum or Herculite doors
- Options: SAM2C-24 with magnetic bond sensor
- Shipping Weight: 2.5 lbs
- Listing: UL 294 Listed
- Warranty: MagnaCare Lifetime Replacement, no-fault warranty
