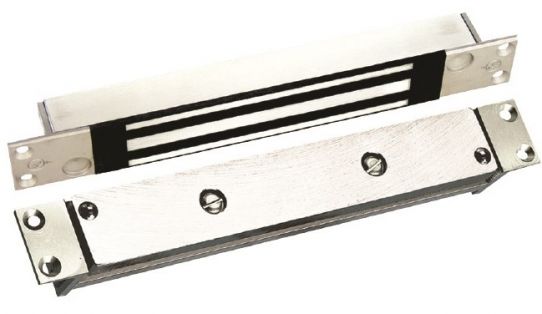

SAM Shear Aligning Magnalock 1200 lb Securitron

$772.80 $966.00

Overview

1200 lb holding force Shear Aligning Magnalock mounts fully concealed into wood, steel or aluminum doors. SAM can also be installed in any position on the door, top, side or bottom and is ideal for swing through and sliding doors.

Features

  • Patented instant release circuit - no residual magnetism
  • Fully sealed electronics - tamper proof and weatherproof
  • Architectural brushed stainless steel finish (US32D/630)
  • All ferrous metal surfaces plated to MIL specification
  • Hardware accessories available to configure any opening
  • Ten feet [3.05m] of jacketed, stranded conductor
  • Automatic dual voltage - no field adjustment required
  • Lock options include BondSTAT magnetic bond sensor and integrated door position switch
  • UL Listed

More Info +


Select Model:
Optional SAM Wood Brackets:
Options

Qty

Product Details

SAM Shear Aligning Magnalock 1200lb Securitron

Product Overview

1200 lbs. holding force Shear Aligning Magnalock mounts fully concealed into wood, steel or aluminum doors. SAM can also be installed in any position on the door - top, side or bottom and is ideal for swing through and sliding doors.

Product Features

  • Patented instant release circuit - no residual magnetism
  • Fully sealed electronics - tamper proof and weatherproof
  • Mounted using steel machine screws into blind finishing nuts
  • Architectural brushed stainless steel finish (US32D/630)
  • All ferrous metal surfaces plated to MIL specification
  • Hardware accessories available to configure any opening
  • Ten feet [3.05m] of jacketed, stranded conductor
  • Automatic dual voltage - no field adjustment required
  • Lock options include BondSTAT magnetic bond sensor and integrated door position switch
  • UL Listed

Specification Data

  • Holding Force: 1200lb [544 kg]
  • Magnet size 10.85 inches L x 1.50 inches W x 1.187 inches D
  • Armature size 10.85 inches L x 1.45 inches W x 1.40 inches D
  • Current Draw and Voltage 320mA at 12VDC; 170mA at 24VDC
  • Operating Temperature -40 to +140F [-40 to +60C]

Models

  • SAM - Shear Aligining Magnalock
  • SAMB - SAM, Mag Bond Sensor
  • SAMBD - SAM, Mag Bond Sensor, Door Position Switch
  • SAMD - SAM, Door Position Switch
  • SAMN - SAM, Narrow Strike Plate

Warranty

Also Known As
SEC100SAM, SN-SAM, HES-SAM
Finish
Stainless Steel
Manufacturer
Securitron
Manufacturer Warranty
Lifetime
Model Number
SAM
Power Requirements
24VDC/12VDC
Status Monitor
Optional
UPC Code
784607028048
1 Question asked on SAM Shear Aligning Magnalock 1200 lb Securitron



Q Chris Kinsey • 02/23/2021, 4:12:55 PM Is your SAM-BD maglock RoHs compliant?
A 02/24/2021, 11:12:03 AM Yes, RoHS 2 is also a CE-marking directive, with RoHS compliance being required for CE marking of products. As such, all manufacturers of electrical/electronic products must comply with RoHS 2 before the CE mark can be applied on their products. The Securitron® SAM Shear Aligning Magnalock® 1,200 lbs holding force, shear aligning Magnalock referenced in your question carries the CE-marking directive. Reference: In the Documents section on the product page the 'Datasheet PDF' document provides specifications and displays the CE-marking.
