SDC 1561 1562 Concealed HI/Shear EmLock 2,000lbs
Processing...

SDC 1561 1562 Concealed HI/Shear EmLock 2,000lbs

$571.20 $816.00

Overview

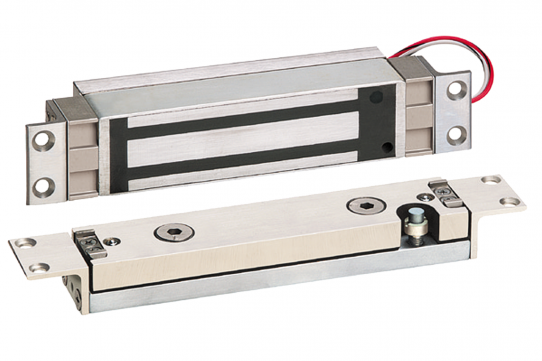

The SDC Hi/Shear® is a totally concealed, high security, failsafe locking mechanism with superior appearance. The patented Hi/Shear® electromagnetic lock design incorporates a “floating” armature assembly and special alloy steel locking “tabs” on both the lock and armature assemblies, that may be adjusted both vertically and laterally to compensate for wide door gaps and warped or misaligned doors.

Hi/Shear® magnetic locks are ideal for use on commercial grade hollow metal and wood doors and frames and Herculite doors with top rails.

Made in the USA

More Info +


Select Model:
Specify Armature. Armature supplied with lock.:
Options

Qty

Product Details

Product Overview

Hi/Shear® magnetic locks are ideal for use on commercial grade hollow metal and wood doors and frames and Herculite doors with top rails.

Door Static and Alignment Sensor

The door static sensor ensures that the door is at rest and aligned, before the magnet is permitted to energize, eliminating potential for lock misalignment.

Vertical Alignment Adjustment

Vertical adjustment of both the armature and the adjustable delay relock sensor compensates for wide door gaps.

Alloy Steel Shear Tabs on Lock and Armature

Alloy shear tabs are used on both the lock and the armature to ensure continued high holding force. There is no profiling of the soft armature steel that may be prone to wear and reduced holding force.

Model

  • 1561ITCM (standard) Shearlock, 1-5/8 inch depth, integrated electronics for 1-3/4 inch to 2 inch frames. 2,000lbs holding force
  • 1562ITCM (standard) Shearlock, 1-1/4 inch depth, with external electronics, for 1-1/4 inch to 1-3/4 inch frames. 2,000lbs holding force

Specifications

  • Input Voltage: Dual voltage Sensing 12/24 VDC
    • 350mA @ 24VDC
    • 650mA @ 12VDC
  • Lock Body Dimensions:
    • 1561: 8 inches L x 1-1/2 inches W x 1-5/8 inches D (203.2 x 38.1 x 41.3mm)
    • 1562: 8 inches L x 1-1/2 inches W x 1-1/4 inches D (203.2 x 38.1 x 32mm)
  • Armature Assembly Dimensions:
    • 8 inches L x 1-1/2 inches W x 7/8 inches D (203.2 x 38.1 x 22.2mm)

Options

  • HTR - Herculite top rail armature adjustment bracket for leading edge adjustments.
  • B - Bond sensor indicates proper armature contact or reduced holding power due to improper armature contact or tampering. SPDT 0.25amp
  • DPS - Door position switch indicates door open or closed. SPDT 0.25amp maximum.
  • L-3 - External LED status indicator, mounts separately through the frame and may be used to indicate lock is energized or wired to BAS bond sensor for door status.
  • WDRBM - Wood door reinforcement box
Finish
Aluminum
Maglocks.com Rating
Better
Manufacturer
SDC Security
Manufacturer Warranty
Lifetime
Model Number
1561 and 1562
Power Requirements
24VDC/12VDC
Status Monitor
Optional
1 Question asked on SDC 1561 1562 Concealed HI/Shear EmLock 2,000lbs



Q sam • 02/10/2020, 6:44:50 PM What is the proper distance between the Mag lock in the header and the plate on the door?
A 02/12/2020, 12:59:59 PM For proper operation, the armature must be adjusted upward as close as possible and parallel to the Emlock without interfering with opening and closing of the door. Proper operation cannot be expected with more than 1/8” clearance between the armature and the Emlock. If you find the clearance to be more than 1/8”, shim the assembly with the shims provided. - 1561/1562 Installation Instructions, SDC
