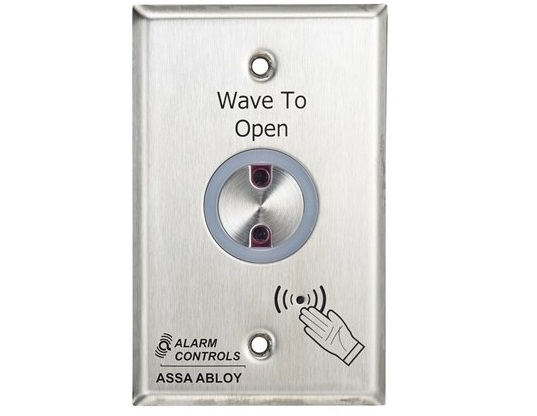

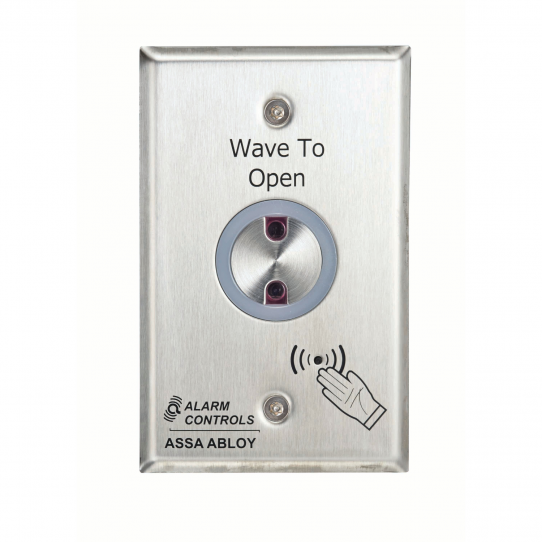

NTS-1 No Touch Request To Exit Station

Product Overview

To operate the switch, make a slow waving motion with your hand within approximately 4 inches of the front of the plate. A tone will sound indicating that the relay has been activated. Switch relay will activate for the amount of time as set by the time delay jumpers. The LED circle on the front of the plate can be set to either the color red (flashes green in 1 second intervals when relay is active) or green (flashes red in 1 second intervals when relay is active). The Backup Button can be used if the motion detector fails to activate the relay.

Specifications

• Sensor: IR, detection range up to approximately 4 in
• Power: 12 to 24 VDC
• Relay: SPDT, rated 2 A @ 30 VDC or AC
• Time delay: 1 to 35 seconds (jumper settable)
• LED: dual color red/green, shows active/inactive status
• Plate: single gang stainless steel, weather resistant, vandal resistant
• Operating temperature: -25 to +55 °C
• Models: NTS-1, NTS1
