Locknetics, WS-200-MB Touchless Wave Switch, with Surface Box
$159.20
$199.00
PRODUCT OVERVIEW

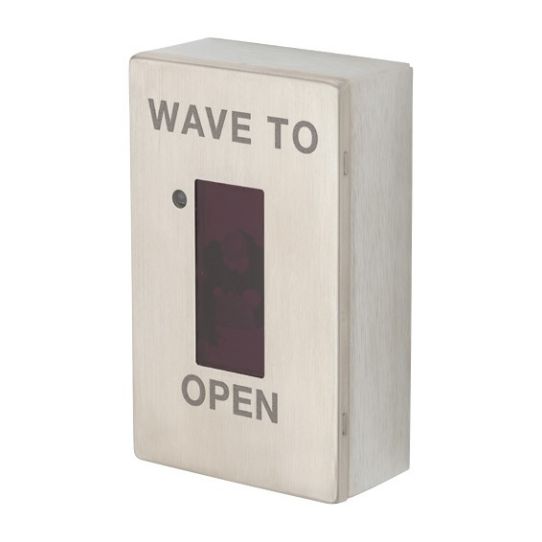

Locknetics, WS-200-MB Touchless Wave Switch with Surface Mount Box
The touchless wave sense series is ideal for request-to-exit situations where a sanitary environment is desired such as healthcare facilities, restaurants, restrooms or labs.
FEATURES
- Infrared sensor adapts to any environment
- Sensor detection range up to approximately 4 inches
- Dual LED (Red/Green) indicates inactive/active status
- Time delay settable for 0.5, 5, 10 or 20 seconds
- Single gang stainless steel, weather resistant and vandal resistant faceplate
- Includes Surface Mount Box
MODEL
- WS-200-MB - Wave Sense Switch, Wave To Open, Single Gang Plate, Satin Stainless Steel, with Surface Mount Box
SPECIFICATION
- 12/24 VDC input power
- SPDT Relay, 2A/30VAC
- Operating temp: -10 degrees F to +130 degrees F
DIMENSIONS
- 4-1/2 inches L (114 mm) x 2-3/4 inches W (70 mm) x 1-3/8 D (35mm)
Specifications
- Model: WS-200-MB Touchless Wave Switch with Surface Mount Box
- Manufacturer: Locknetics
- Technology: Infrared touchless wave sensor
- Sensing Range: Up to approximately 4 inches
- Voltage: 12 V or 24 V, AC or DC
- Relay: SPDT, 2 A at 30 VAC
- Time Delay: Settable, 0.5, 5, 10 or 20 seconds
- Indicator: Dual LED (red/green) for inactive/active status
- Operating Temperature: -10° F to +130° F
- Dimensions: 4-1/2 inches L x 2-3/4 inches W x 1-3/8 inches D (114 mm x 70 mm x 35 mm)
- Faceplate: Single gang stainless steel, weather resistant and vandal resistant
- Finish: Satin stainless steel
- Mount: Surface mount box included
- Use: Request to exit; weather resistant
Also Known As:
WS-200-MB, WS200MB, Locknetics WS-200-MBFinish:
Stainless SteelManufacturer:
LockneticsModel Number:
WS-200-MBOperation Momentary Timer Maintained:
Time Delay Settable for 0.5, 5, 10 or 20 secondsPower Requirements:
24V/12V AC/DCUPC Code:
043156651528Usage:
Weather Resistant
1 Question asked on Locknetics, WS-200-MB Touchless Wave Switch, with Surface Box •
Q
Drew Stasica • 06/02/2022, 4:28:02 PM
Can these WS-200 switches combine with wireless transmitter/receiver hardware to become wireless touchless?
A
06/03/2022, 10:36:42 AM
The WS-200 requires constant +/- input voltage to power the button (60mA@12VDC/40mA@24VDC max draw). While it may be possible to use the SPDT relay on the WS-200 to trigger a wireless transmitter you would still need wires at the button for the input power requirement. Please give us a call to discuss your project in further detail as there may be other products available that are better suited for this application, 1-866-500-5625
