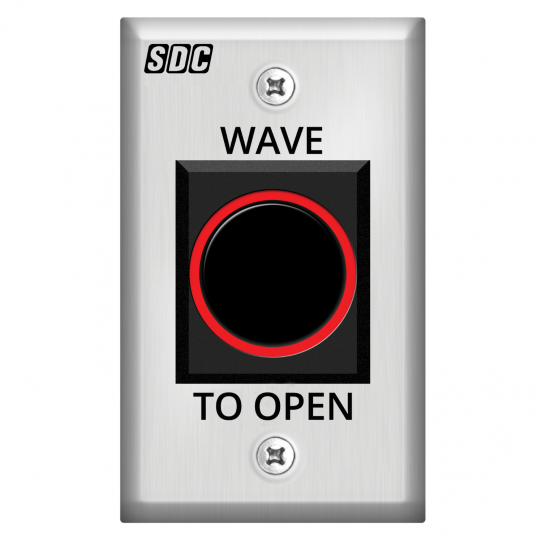

SDC 474U Touchless Wave-to- Exit Switch

$62.30 $89.00

Overview

SDC 474U No Touch Wave-To-Exit Switch for Sanitary Entry/Exit applications.

Features:

  • Uses IR Sensor technology; device is active with the simple wave of a hand
  • Ideal for use in sanitary applications such as cleanrooms, bathrooms, food processing, hospitals and labs
  • 1 second Relay Hold Time per activation
  • SPDT Dry Contact Output
  • No Moving Parts
  • Bi-color Status Illumination

More Info +


Select Model:

Qty

Product Details

Security Door Controls 474U Touchless Wave-to-Exit Switch

Product Overview

SDC 474 No Touch Wave-To-Exit Switch for Sanitary Entry/Exit applications. Designed to control electric locks/strikes, magnetic locks, or automatic door operators.

Ideal for use in sanitary applications such as cleanrooms, bathrooms, food processing, hospitals and labs.

Models

  • 474U - Single Gang Mount, Sanitary No Touch Entry and Egress, ADA Compliant, SPDT momentary output.
  • 474DU - Double Gang Mount, Sanitary No Touch Entry and Egress, ADA Compliant, SPDT momentary output.
  • 474MU - Single Gang Mount, Sanitary No Touch Entry and Egress, ADA Compliant, SPDT momentary output with Manual Override.

Specifications

  • Input: 40mA (standby); 60mA (Active), 12/24VDC
  • Output: SPDT, 3amp Dry Contact
  • Activation Time: 1 second or as long as sensor is triggered
  • LED Color: Standby RED; Active GREEN
  • Range: 2-7 inches, *adjustable
  • Dimensions: 4.5 inches H x 2.75 inches W x 1.375 inches D (115 x 70 x 35mm) for single gang mount

Product Use

Security Door Controls 474U Touchless Wave-to-Exit Switch use active IR sensor technology. A simple wave of the hand in front of the 470 touchless switch activates the switch to control electric locks/strikes, magnetic locks or automatic door operators for entry or egress. 470 series touchless switches come standard with a 2 inch to 7 inch activation read range. The dual LED, illuminated sensor, clearly indicates status. The red LED indicates inactive status, which changes to a temporary green LED state to indicate activation. Ideal for, but not limited to, facilities that require contamination control. Touchless switches help reduce the spread of infection and disease in any application.

  • Wave-to-open activation
  • Active IR sensor technology
  • Illuminated dual LED sensor
  • Durable stainless steel faceplate
  • 8 inch wire harness
  • Field selectable dual voltage
Also Known As
SZ-474U, SDC-474U, SZ-474DU, SDC-474DU
Manufacturer
SDC Security
Model Number
474U-474DU
Mount
Single Gang,Double Gang
Operation Momentary Timer Maintained
Momentary
Power Requirements
24VDC/12VDC
Switch Type
SPDT
Type
Touchless
UPC Code
712905167497
1 Question asked on SDC 474U Touchless Wave-to- Exit Switch



Q Michael Carroll • 11/08/2020, 1:53:04 PM What is the IP rating of the unit.
A 11/10/2020, 12:06:49 PM Per the manufacture "This product does not have an IP rating" - SDC
