Product Overview

No-touch switch for hands-free activation.

The Wave Sense Switch features a new class of motion sensing technology for hands-free, contactless switch activation. Use for request to exit (REX), activation or on/off switching to trigger a variety of access control devices in place of a push plate or push button.

Product Features

• Active microwave motion sensing using Doppler radar — more reliable than infrared sensors
• Adjustable sensing zone from 4 inches to 24 inches helps screen out incidental traffic
• Microwave sensing FCC certified for use in general and medical environments
• Touchless activation for hands-free operation, reduces transmission of germs
• Pulse mode to initiate action or toggle mode to provide on/off switch
• Mounting ring included or install in standard plastic or metal gang box
• Water resistant foam gasket included
• Compatible with Securitron WBB Weather Back Box and WCC Weather Cover-Clear *sold separately
• Includes (1) single gang & (1) double gang faceplate

Specification Data

• Electromagnetic compatibility according to 2004/108/EC
• FCC: G9B-MS08
• IC: 4680A-MS08

Dimensions

• Single gang faceplate: 4-1/2 inch x 2-3/4 inch
• Double gang faceplate: 4-1/2 inch x 4-1/2 inch

Current

• Self-sensing 12 or 24V DC or AC input (±10%)
• Maximum power consumption: less than 1.5W (125 mW at 12 VDC)
• 1A SPDT contact can be operated in toggle or pulse mode
• Pulse output: 0.5 seconds

Operating Temperature

• Temperature range -4° F to +131° F [-20° C to +55° C]

Models

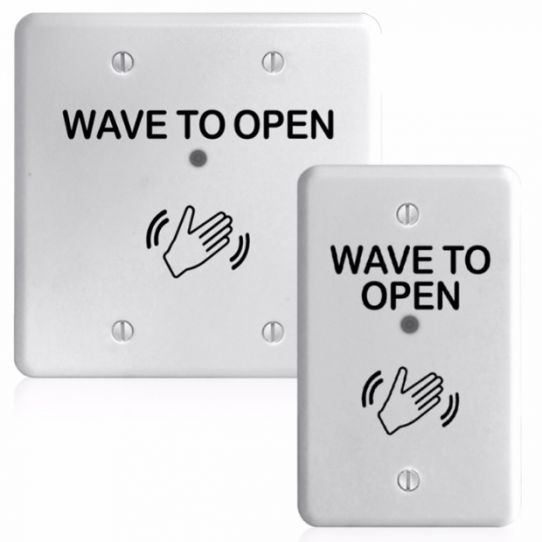

• WSS-WSD- Wave Sense Switch with Single Gang & Double Gang faceplates, White

* replaces discontinued part numbers WSS-W1, WSS-W2

Warranty

• MagnaCare® Lifetime Replacement Warranty

Specifications

• Model: WSS-WSD Wave Sense Switch (replaces WSS-W1 and WSS-W2)
• Manufacturer: Securitron
• Technology: Active microwave motion sensing (Doppler radar); touchless
• Sensing Zone: Adjustable, 4 inches to 24 inches
• Voltage: 12 V or 24 V, AC or DC (self-sensing, +/-10%)
• Power Consumption: Less than 1.5 W (125 mW at 12 VDC)
• Contact: SPDT, 1 A; toggle or pulse mode (pulse output 0.5 seconds)
• Operating Temperature: -4° F to +131° F (-20° C to +55° C)
• Faceplates Included: Single gang, 4-1/2 inches x 2-3/4 inches; double gang, 4-1/2 inches x 4-1/2 inches
• Finish: White
• Mount: Single gang or double gang box; mounting ring and water resistant foam gasket included
• Compliance: FCC G9B-MS08; IC 4680A-MS08; EMC per 2004/108/EC; FCC certified for general and medical environments
• Warranty: MagnaCare Lifetime Replacement Warranty
