BOSCH DS150i Series Request-to-exit Detectors
$158.12
$225.89
Product Overview
The DS150i is a passive-infrared detector designed for request to exit (REX) applications. It is UL Listed as an access control device under the UL 294 standard and is listed for Class I for UL Canada (ULC-S319). For C-UL listed installation applications, the REX shall be connected to ULCS319 listed compatible devices (i.e. control units, power supply and locks). Intended for indoor use only.
Standard Features
- Single or Double Door use
- Wall or ceiling mountable
- Internal vertical pointability
- Wrap-around coverage pattern
- Selectable relay trigger mode
Technical Specifications
- Alarm output: Two form C relay contacts
- Indicators: One activation LED
- Relay Latch Time: Adjustable to 60 sec.
- Enclosure Dimensions: 6.25 inch L x 1.5 inch W x 1.5 inch D
- Enclosure Material: High impact ABS plastic
- Power Loss Default Mode: Programmable fail-safe or fail-secure modes
- Timer Mode: Programmable reset (accumulative) or non-reset (counting) mode.
- Mounting Location: Surface mount on wall or ceiling
- Voltage: 12VAC or VDC, 24 VAC or VDC
- Current Draw: 26 mA at 12 VDC
- Operating Temperature: -29°C to +49°C (-20°F to +120°F)
Models
- DS150i - light gray

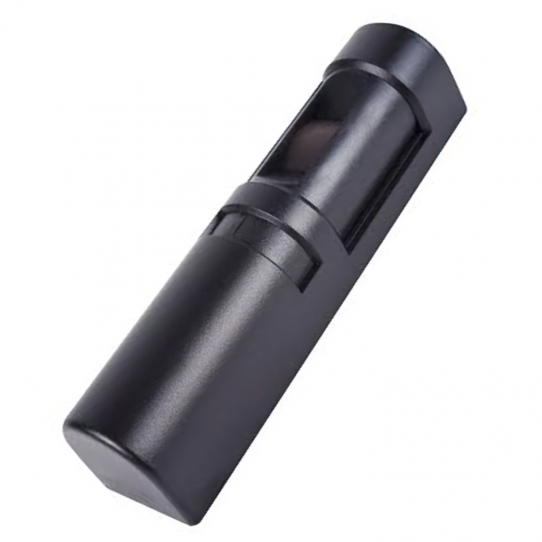

- DS151i - black
Also Known As:
DET200DS150I, DS-DS150I, BOS-DS150IFinish:
(selectable)Manufacturer:
BoschModel Number:
DS150i, DS151iPower Requirements:
24V/12V AC/DCUPC Code:
8717332791712Usage:
Interior Use Only
4 Questions asked on BOSCH DS150i Series Request-to-exit Detectors •
Q
Adam Levenson • 08/25/2023, 6:07:22 AM
Will it work with a standard mag lock system? I want to remove the "push to exit" buttons and replace with these detectors... Could they be wired in the same as the button or keypad?
A
08/25/2023, 11:27:27 AM
Yes, these Bosch Motion sensors can be used to cut power directly to a magnetic lock for egress purposes. Typically you would run power "in-series" through one of the SPDT relay contacts on this sensor direct to the lock, when the sensor activates the relay would break the flow of power allowing the magnet to release. To go over this product in further detail please give us a call direct at 1-866-500-5625
Q
Clay Johnson • 03/15/2024, 8:11:59 AM
Is the BOSCH DS150I SERIES REQUEST-TO-EXIT DETECTORS a sensor that is wired into a magnetic lock that will disengage when the sensor is tripped.
A
03/15/2024, 4:55:13 PM
Yes, that is correct. The DS150 series motion sensor can be wired to cut power directly to the magnetic lock allowing for a safe egress. For any additional questions regarding this sensor or for help configuring a complete system please give us a call direct at 1-866-500-5625
