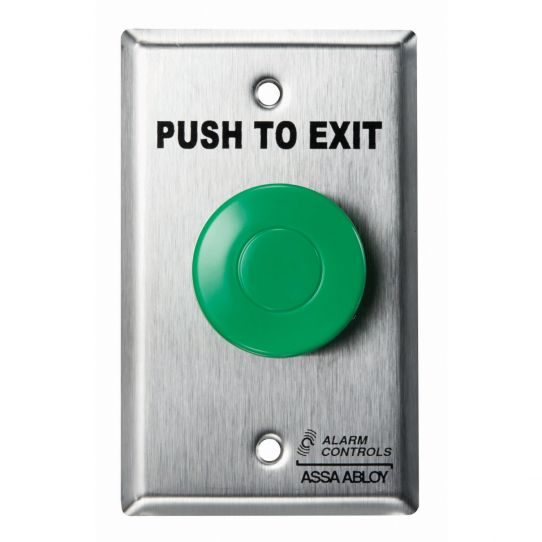

Alarm Controls, TS-14 Mushroom Exit Button with Pneumatic Timer

$393.93 ~~$463.45~~

Overview

The TS-14 request to exit station with pneumatic timer and push button, provides a convenient way to keep the door unlocked for a specified amount of time, allowing for easy entry or egress.

The door will relock when the relay time has expired.

PRODUCT DESCRIPTION

The TS-14 request to exit station with pneumatic timer and push button, provides a convenient way to keep the door unlocked for a specified amount of time, allowing for easy entry or egress. The door will relock when the relay time has expired.

FEATURES

Switch mounted on single gang wall plate with 430 stainless steel finish
1-1/2 inch green mushroom push button
Plate screened “PUSH TO EXIT” for easy to follow egress instructions
Pneumatic time delay is adjustable 2 to 60 seconds
Does not require external power for operation
Timer life: up to 1 million operations

SPECIFICATIONS

One N/O and one N/C contact pair
Contacts rated 10A at 120 VDC
Switch depth behind plate: 2-1/4 inches
Switch time repeatable +/- 10%
Switch terminated with 10 inch colored leads
Operating Temperature: +15 to 120F (-9 to 49C)

MODEL

TS-14 - Request to Exit Station with Pneumatic Timer, Green Mushroom

CERTIFICATION

UL 294 listed

Also Known As

TS14, TS14, AC-TS14, HES-TS14

Finish

Stainless Steel

Manufacturer

Alarm Controls

Model Number

TS-14

Power Requirements

n/a

Switch Type

One N/O and one N/C contact pair, Pneumatic

Type

Mushroom

UPC Code

818257443385

Datasheet PDF

Installation PDF

1 Question asked on Alarm Controls, TS-14 Mushroom Exit Button with Pneumatic Timer • Ask a Question

Q Leo Gonzalez • 04/03/2024, 10:31:04 AM How do you wire the PAIR of NC and NO cables for the TS-14 ? Do you group them together when connecting them back to the NC and NO PORTS ON THE BOARD?

A 04/04/2024, 12:23:01 PM The TS-14 mushroom button features (1) NO dry contact & (1) NC dry contact. The NO contact is used when you need to connect two wires together upon button press (typically used to trigger an input), the NC contact would disconnect/break the connection when the button is pressed. (typically wired in-series with a fail-safe lock to cut power). To go over these contacts in greater detail please give us a call at 1-866-500-5625
