SDC 450 Series Vandal Resistant Button

SDC Security Door Controls 450 Series Vandal Resistant SS Button

Product Overview

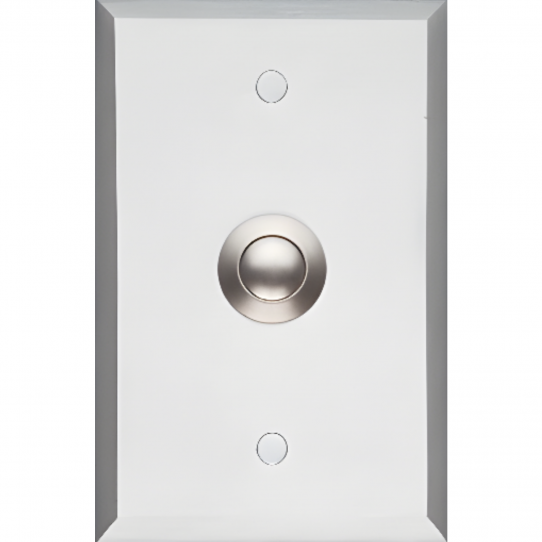

The SDC 450 Series incorporates a 0.25 inch thick aluminum faceplate and a stainless steel button. The assembly will resist the impact of a hammer blow. Tamper resistant aluminum plugs conceal and inhibit tampering security screws.

Models

• 451V AA (On/Off) SPDT, 1 gang
• 451NV AA (On/Off) SPDT, Narrow
• 453PV Pneumatic Timer, Adj. 2-60 sec. SPDT 10amp @ 30VDC, 1 Gang
• 453PNV Pneumatic Timer. Adj. 2-60 sec. SPDT 10amp @ 30VDC, Narrow
•

• 452 Momentary, SPDT, 1 gang (Discontinued/Sold out)
• 452N Momentary, SPDT, Narrow (Discontinued/Sold out)

Specifications

• Mount: Single gang or narrow
• Button: 1/2 inch round stainless steel
• Faceplate: 1/4 inch thick aluminum
• Screws: Concealed tamper resistant security screws
• Timer Models (453PV, 453PNV): Pneumatic timer, adjustable 2-60 sec, SPDT 10 A @ 30 VDC
