Locknetics, IPB-300 Mushroom Push Button
$124.00
$155.00

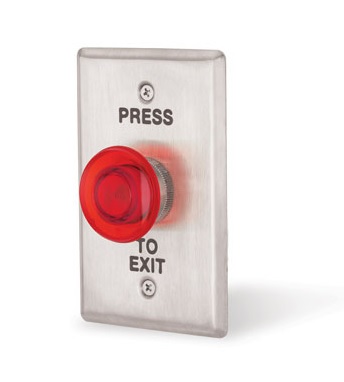

Locknetics IPB-300 Mushroom Push Button
Product Overview
The IPB-300 Series combines the most popular buttons in one box. Packaged with both red and green lenses for optimal flexibility.
Product Features
- Round Mushroom Style button
- Single Gang mount
- Packaged with both Red and Green Lenses
- (1) NO and (1) NC contact, Momentary action
- LED Illuminated
Specification Data
- Size: 4-11/16 inch L x 3 inch W x 5/32 inch D
- Relay Ratings: 6A/125VAC or 3A/300VAC
- LED Voltage: 12VDC
Models
- IPS-300 - Mushroom Style Push to Exit Button, Single Gang
Specifications
- Model: IPB-300 Mushroom Push Button
- Manufacturer: Locknetics
- Button: Round mushroom style, momentary, LED illuminated
- Contacts: (1) NO and (1) NC
- Relay Rating: 6 A at 125 VAC or 3 A at 300 VAC
- LED Voltage: 12 VDC
- Size: 4-11/16 inches L x 3 inches W x 5/32 inch D
- Mount: Single gang
- Lenses: Red and green lenses included
