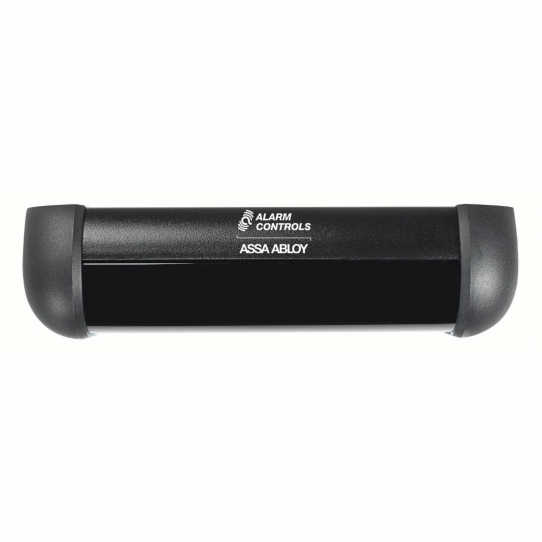

Alarm Controls SREX-100 Request to Exit Motion Sensor

$136.00 $160.00

Overview

The SREX-100 is an active infrared request to exit sensor for interior applications located within the protected premise.  The SREX-100 is designed to mount over the door header so that its detection pattern is placed directly over the door handle.

When the user reaches for the door handle the exit device releases allowing the person to exit. The active detection curtain is well defined to keep the door secure while rejecting parallel traffic and objects placed under it.

Recommended for:
• Use with magnetic locks
• Busy/active areas
• Med-High security settings
• Single door installations

More Info +


Qty

Product Details

Standard Features

•ACTIVE FOCUSED INFRARED TECHNOLOGY
• U.L. 294 AND ULC-S319 LISTED FOR ACCESS CONTROL APPICATIONS
• NARROW ACTIVATION ZONE IS LIMITED TO DOOR HANDLE AREA
• DESIGNED TO ELIMINATE CROSS-TRAFFIC ACTIVATION
• CAN NOT BE DECEIVED BY PLACING OBJECTS UNDER THE DOOR
• EASY INSTALLATION AND ADJUSTABLE DEPTH ZONE
• OPERATES ON 12 OR 24 VOLTS AC OR DC, CURRENT DRAW 60 MA.
• DOUBLE POLE, DOUBLE THROW RELAY WITH 2A. CONTACTS
• ADJUSTABLE TIME DELAY FROM 1 TO 60 SECONDS
• BUILT-IN BUZZER, CAN BE SILENCED IF REQUIRED
• REQUEST TO EXIT INPUT, KEYPAD OR CARD READER INPUT
• 14 PIN CONECTOR WITH FOUR FEET OF CABLE
• THREE YEAR WARRANTY

Technical Specifications

• OPERATING VOLTAGE: 12 OR 24 VOLTS AC/DC, AUTO VOLTAGE SELECTION
• CURRENT DRAW: 155 MA., (SOUNDER OFF), 200 MA., (SOUNDER MAXIMUM VOLUME)
• RELAY CONTACT RATING: 1.3 A. @ 30 VOLTS DC OR 24 VOLTS AC
• RELAY CONTACT ARRANGEMENT: DOUBLE POLE-DOUBLE THROW, (2 FORM C)
• TEMPERATURE: FOR U.L. LISTED INSTALLATIONS +32 F TO +120 F, (0 C TO +49C)
• HUMIDITY: 0% TO 93% NON-CONDENSING FOR ULC-S319 INSTALLATIONS, 0% TO 85% NON-CONDENSING FOR UL-294 LISTED INSTALLATIONS.
• REQUEST TO EXIT INPUT: NORMALLY-OPEN DRY CONTACTS
• KEYPAD OR CARD READER INPUT: NORMALLY-CLOSED DRY CONTACTS
• DOOR POSITION SWITCH INPUT: NORMALLY-OPEN DRY CONTACTS
• SIZE: 6.875” L (174.63mm) x 1.875” H (47.63mm) x 2” W (51mm)
• MATERIAL: BLACK ANODIZED ALUMINUM AND ABS PLASTIC
• WIRING INTERFACE: 14 PIN CONNECTOR WITH 4 FEET OF CABLE
• CERTIFICATIONS: UL/CUL 294/S319, FCC PART B
• THE SREX-100 HAS A THREE YEAR WARRANTY

Finish
Black
Maglocks.com Rating
Best
Manufacturer
Alarm Controls
Manufacturer Warranty
3 Year
Model Number
SREX-100
Power Requirements
24V/12V AC/DC
