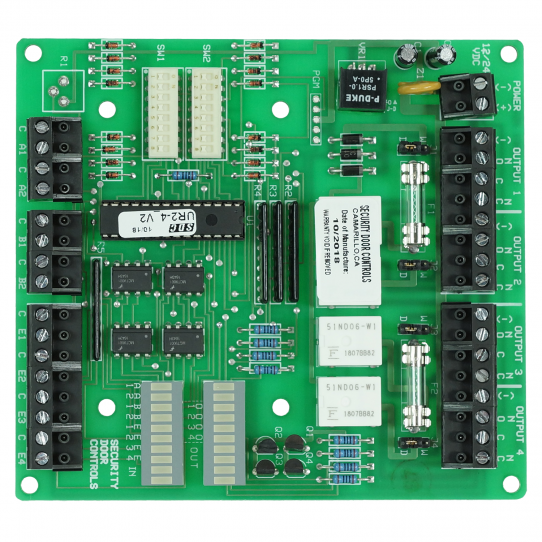

SDC, UR2-4 Universal Mantrap Interlock Controller for Two Doors, (board only)

PRODUCT OVERVIEW

One door controller, multi-door applications: whether you need to control one door or many doors, they are an affordable, field programmable SDC UR series door controller to create your perfect door opening system to reduce costly programming and wiring time. The award-winning UR series is the same simple, reliable, flexible solution to door control trusted in thousands of installations since 1998.

UR2-4 two-door microprocessor boards have programmable system and station modes to meet virtually any applications such as airlock, interlock, mantrap and shared bathroom.

Programmable System Modes

• Airlock/Interlock Mode A - All doors normally unlocked, opening any door causes all other doors to lock.
• Mantrap Mode B - All doors normally locked. When any door is unlocked all other doors are incapable of unlocking.
• Mantrap Mode C - Select doors locked or unlocked. When unlocked door is opened, locked doors are incapable of unlocking. When a locked door is unlocked, normally unlocked doors lock and all other locked doors are incapable of unlocking.
• Shared Hospital/Dorm Bathroom A - Doors equipped with magnetic locks.
• Shared Hospital/Dorm Bathroom B - Doors equipped with electrified locksets.

FEATURES

• Microprocessor based system logic
• Multiple selectable relay & system logic modes
• Selectable contact relay configuration modes
• Programmable system & station modes
• Optically isolated dry inputs
• Auto-sensing dual voltage
• Visual status indicators (LED)

MODEL

• UR2-4 - Universal Mantrap Interlock Controller for Two Doors, (board only)
