SDC Excel E600 Traffic Control, Air-Lock and Interior Door

Product Overview

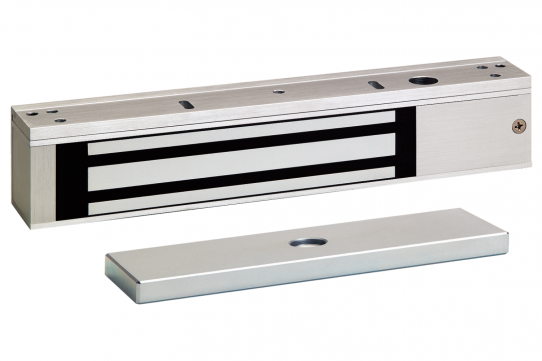

600 lb / 272 kg holding force magnetic lock for interior door traffic control where physical attack is not a concern. Door and lock status outputs included for remote monitoring, mantraps and system application needs.

Standard Features

• Door status, lock status and Bi-color LED
• Interlocking quick mount assembly
• Adjustable mounting bracket with choice of self drilling and tapping mounting screws or machine screws
• Wire access chamber with terminal block
• Dual voltage 12/24VDC
• 628 Clear anodized aluminum

Model

• E600 600 lb / 272 kg with door status, locked status and LED

Mechanical Specifications

• Holding Force: 600 lbs / 272 kg
• Lock: 9-7/8 inches L x 2-1/16 inches H x 1 inches D (250 L x 51 H x 26 D mm)
• Armature: 7-5/16 inches L x 1-1/2 inches H x 1/2 inches D (186L x 38H x 13D mm)

Electrical Specifications

• Circuitry and Wiring: PC board with voltage and current spike protection, instant release anti-residual magnetism circuit, terminal block for power input and status outputs
• Voltage: 12/24VDC, field selectable
• Current: 500 mA @ 12VDC; 250mA @ 24VDC
• Lock Status Contact: SPDT, 2amp @ 30VDC
• Door Status Contact: SPDT, 250mA @ 30VDC

Specifications

• Model: E600 Excel Magnetic Lock
• Manufacturer: SDC
• Holding Force: 600 lbs (272 kg)
• Voltage: 12 VDC or 24 VDC (field selectable)
• Current Draw: 500 mA at 12 VDC; 250 mA at 24 VDC
• Lock Size: 9-7/8 inches L x 2-1/16 inches H x 1 inch D (250 mm x 51 mm x 26 mm)
• Armature Size: 7-5/16 inches L x 1-1/2 inches H x 1/2 inch D (186 mm x 38 mm x 13 mm)
• Lock Status Contact: SPDT, 2 A at 30 VDC
• Door Status Contact: SPDT, 250 mA at 30 VDC
• LED Indicator: Bi-color
• Finish: 628 clear anodized aluminum
• Use: Interior door traffic control
• Protection: Voltage and current spike protection; instant release, anti-residual magnetism circuit
• Warranty: Lifetime
