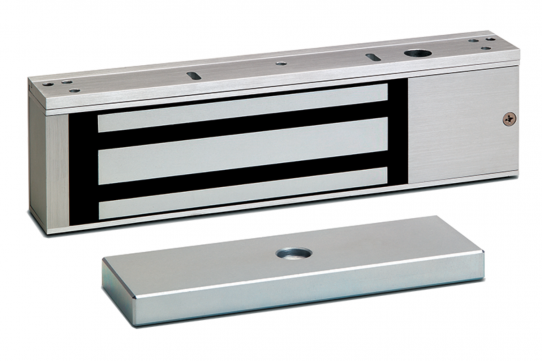

SDC Excel E1200 for Security Access Control & Mantrap

$212.80 $304.00

Overview

The value priced Excel™ Architectural Series full featured magnetic locks are easier to install and provide superior, less obtrusive appearance compared to stainless steel epoxy sealed magnetic locks. Full monitoring is standard. The quick mount assembly reduces installation time compared to epoxy sealed magnetic locks.

Recommended for perimeter and interior doors & mantraps.

Standard Features:
• Door status, lock status and Bi-color LED
• Interlocking quick mount assembly
• Adjustable mounting bracket with choice of self drilling and tapping mounting screws or machine screws
• Wire access chamber with terminal block
• Dual voltage 12/24VDC
• 628 Clear anodized aluminum

More Info +


Mounting Brackets and Filler Bars:
Options

Qty

Product Details

Product Overview

1200 lb / 545 kg holding force magnetic lock for perimeter and interior door security and access control. Door and lock status outputs included for remote monitoring, mantraps and system application needs.

Standard Features

  • Door status, lock status and Bi-color LED
  • Interlocking quick mount assembly
  • Adjustable mounting bracket with choice of self drilling and tapping mounting screws or machine screws
  • Wire access chamber with terminal block
  • Dual voltage 12/24VDC
  • 628 Clear anodized aluminum

Model

  • E1200 1200 lb / 545 kg with door status, locked status and LED

Mechanical Specifications

  • Holding Force: 1200 lbs / 545 kg
  • Lock: 10-1/2 inches L x 2-7/8 inches H x 1-5/8 inches D (266 L x 73 H x 41 D mm)
  • Armature: 7-5/16 inches L x 2-3/8 inches H x 5/8 inches D (186 L x 61 H x 16 D mm)

Eletrical Specifications

  • Circuitry & Wiring: PC board with voltage and current spike protection, instant release anti-residual magnetism circuit, terminal block for power input and status outputs
  • Voltage: 12/24VDC, field selectable
  • Current: 500 mA @ 12VDC; 250mA @ 24VDC
  • Lock Status Contact: SPDT, 2amp @ 30VDC
  • Door Status Contact: SPDT, 250mA @ 30VDC
Also Known As
SZ-E1200, SDC-E1200
Finish
Aluminum
Manufacturer
SDC Security
Manufacturer Warranty
Lifetime
Model Number
E1200
Power Requirements
24VDC/12VDC
Status Monitor
Standard
UPC Code
712905124742
1 Question asked on SDC Excel E1200 for Security Access Control & Mantrap



Q Kelsie • 04/26/2020, 1:33:24 PM How can I improve our maglocks? They are not working properly and I worry for the security of my valued customers,
A 04/27/2020, 5:34:20 PM Voltage & Armature Alignment are usually the two most common issues. However, there can be numerous reasons why a Magnetic Lock may not be working properly. Please give us a call at 1-866-500-5625 so we can pull your order and troubleshoot in further detail.
