SDC OEM Part, PR-1000 Power Regulator for Electronic Bolt Locks

SDC OEM Replacement Part

SDC OEM Part, PR-1000 Power Regulator for Electronic Bolt Locks.

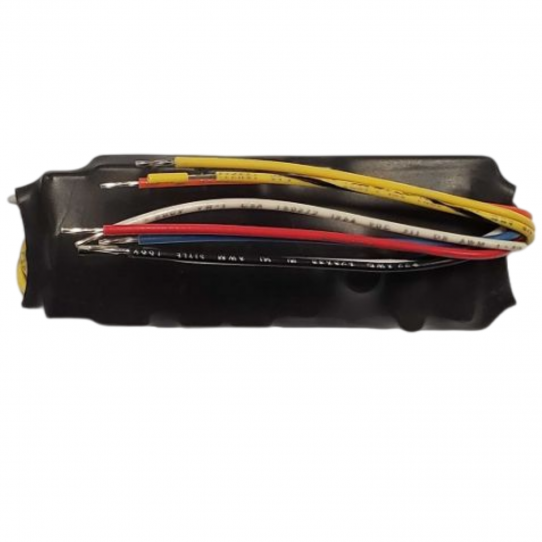

The SDC PR-1000 Power Regulator reduces the power consumption of the bolt locks after activation of the lock. This allows for a heat reduction to the bolt lock.

Compatibility

The SDC PR1000 works specifically with the following bolt locks:

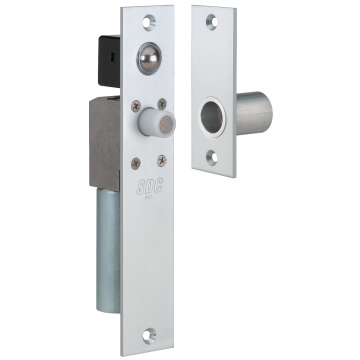

• FS23M
• 1091A/ADL
• 1291A
• 1190A
• 1490A
• 2490A
• 110
• 210
• 160
• 260

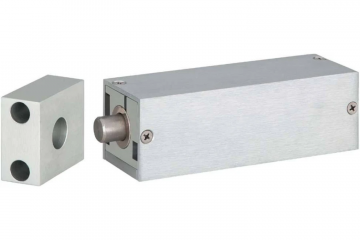

• 180
• 280

Specification

• PR1000 Input Voltage: 12/24 VDC/AC (+/-10%) NOTE: 1190A will operate at 24VDC only. DC voltage is recommended for optimal performance
• *refer to your specific model's installation instructions for wiring details.

Dimensions

• A dimension of 3-3/4 inches x 1-1/4 inches x 1/2 inch is required when mounted in frame

Specifications

• Model: PR-1000
• Also known as: PR1000, SZ-PR1000, SDC-PR1000
• Manufacturer: SDC Parts (OEM replacement part)
• Type: Power regulator for electronic bolt locks (reduces power after lock activation to reduce heat)
• Input voltage: 12/24 VDC/AC (+/-10%); DC recommended; 1190A operates at 24 VDC only
• Compatible bolt locks: FS23M, 1091A/ADL, 1291A, 1190A, 1490A, 2490A, 110, 210, 160, 260, 180, 280
• Mounting dimensions: 3-3/4 inches x 1-1/4 inches x 1/2 inch (when mounted in frame)
• UPC: 712905238241
