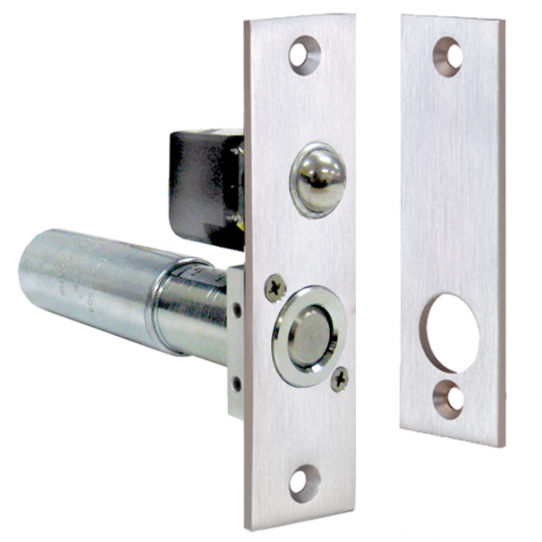

SDC 160IV and 260HV Mortise Bolt Locks, auto relock switch

Product Overview

The solenoids are the strongest found in the industry for commercial or industrial grade applications. The power and strength of the solenoids far surpasses any competitive models. Auto relock switch & bolt adjustable for wide door gaps.

Note: 5 inch depth required

The failsafe 160 and failsecure 260 bolt locks are equipped with an auto relock switch that keeps the bolt retracted when the door is open and causes the door to lock when closed. The auto relock switch and the bolt assembly are both adjustable for wide door gaps.

Note: Not for use in wood frames.

Applications

• Pharmacy Cabinets
• Gun Cabinets
• Utility Cabinets
• Swing and Sliding Doors

Model

• 160IV: 4-7/8 inch L x 1-1/4 inch W Face plate, with auto relock switch, Failsafe - Locked when energized
• 260HV: 4-7/8 inch L x 1-1/4 inch W Face plate, with auto relock switch, Failsecure - Unlocked when energized

Electrical Specifications

• Voltage: Dual 12/24VDC
• 900mA @ 12VDC
• 450mA @ 24VDC

Mechanical Specifications

• Finish: 628 Anodized Aluminum
• Faceplate: 4-7/8 inch L x 1-1/4 inch W x 1/8 inch D
• Strike: 4 inch L x 1-1/4 inch W x 1/8 inch D
• Bolt: 5/8 inch dia. x 1/2 inch throw (15.87mm x 12.7mm)
• Depth: 5 inch (127mm)
• Weight: 1.7 lbs.

Specifications

• Model: 160IV (failsafe) and 260HV (failsecure) Mortise Bolt Locks with Auto Relock Switch
• Manufacturer: SDC
• Voltage: 12 VDC or 24 VDC (dual voltage)
• Current Draw: 900 mA at 12 VDC; 450 mA at 24 VDC
• Fail Mode: 160IV failsafe (locked when energized); 260HV failsecure (unlocked when energized)
• Faceplate: 4-7/8 inches L x 1-1/4 inches W x 1/8 inch D
• Strike: 4 inches L x 1-1/4 inches W x 1/8 inch D
• Bolt: 5/8 inch diameter x 1/2 inch throw (15.87 mm x 12.7 mm)
• Depth Required: 5 inches (127 mm)
• Weight: 1.7 lbs
• Auto Relock Switch: Included; keeps bolt retracted when door is open and locks when door closes
• Use: Not for use in wood frames
• Finish: 628 anodized aluminum
• Warranty: 2 years
