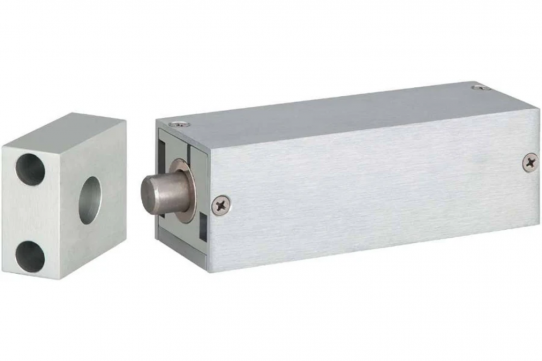

Product Overview

Universal Mounting Capability Provides Controlled Access of Doors, Closets and Cabinets. The SDC universal surface mount electric bolt locks are available in failsafe and failsecure. The addition of a card reader, digital keypad or remote control provides access control and convenience of use for a variety of applications

The SDC universal surface mount electric bolt locks are available in failsafe and failsecure. The addition of a card reader, digital keypad or remote control provides access control and convenience of use for a variety of applications.

Model

180AIV - Surface mount bolt lock, failsafe, auto relock, power regulator standard. 628 Aluminum Finish
280AHV - Surface mount bolt lock, failsecure, auto relock, power regulator standard. 628 Aluminum Finish

(V) Indicates standard 626 Aluminum Finish

Discontinued part numbers below

180ALIV - Surface mount, left hand, failsafe, with auto relock
180ARIV - Surface mount, right hand, failsafe, with auto relock
180ALRIV - Top Jamb, left hand reverse, failsafe, with auto relock
180ARRIV - Top Jamb, right hand reverse, failsafe, with auto relock
280LHV - Surface mount, left hand, or top jamb mount right hand reverse, failsecure less auto relock
280RHV - Surface mount, right hand, or top jamb mount, left hand reverse, failsecure less auto relock

Electrical Specifications

Voltage: Dual 12/24VDC 900mA@ 12VDC continuous 450mA @ 24VDC continuous

Mechanical Specifications

Lock Dimensions: 6 inch L x 2 inch W x 2 inch H (152.4 x 50.8 x 50.8mm)
Bolt: Solid Stainless Steel 5/8 inch dia. x 1/2 inch throw (15.9 x 12.7mm)

Features

12VDC/24VDC standard
630 Satin stainless steel face plate

Specifications

Model: 180AIV (failsafe) and 280AHV (failsecure) Surface Mount Bolt Locks
Manufacturer: SDC
Voltage: 12 VDC or 24 VDC (dual voltage)
Current Draw: 900 mA at 12 VDC continuous; 450 mA at 24 VDC continuous
Lock Size: 6 inches L x 2 inches W x 2 inches H (152.4 mm x 50.8 mm x 50.8 mm)
Bolt: Solid stainless steel, 5/8 inch diameter x 1/2 inch throw (15.9 mm x 12.7 mm)
Fail Mode: 180AIV failsafe; 280AHV failsecure
Auto Relock: Included; power regulator standard
Face Plate: 630 satin stainless steel
Warranty: 2 years

Also Known As:

SZ-180AIV, SDC-180AIV, SZ-280AHV, SDC-280AHV

Manufacturer:

SDC Security

Manufacturer Warranty:

2 Year

Model Number:

180/280

Power Requirements:

24VDC/12VDC

Status Monitor:

Optional

UPC Code:

712905109190

Datasheet PDF

Installation PDF

Pricesheet PDF

1 Question asked on SDC 180-280 Surface Mount Bolt Locks • Ask a Question

Q Jaymie Schrot • 03/15/2021, 2:02:44 PM Do the surface mount electric bolt locks come with an electrical supply converter, and can the be mounted in any position on the door (left, right, top, bottom)?

A 03/16/2021, 5:03:40 PM The 180/280 bolt locks will come with a PR-1000 Power Regulator, designed to increase solenoid lifespan. Required Input Voltage on the PR-1000 is 12/24 VDC/AC (+/-10%) DC voltage is recommended for optimal performance. *Note, you will still need to purchase a power supply to provide this input power (sold separately). These locks are designed for a Header Mount, Side-Jamb or Top-Jamb mount with the bolt shooting to the left, right or top-down. They are not recommended for a bottom mount where the bolt would shoot in the upwards position.
