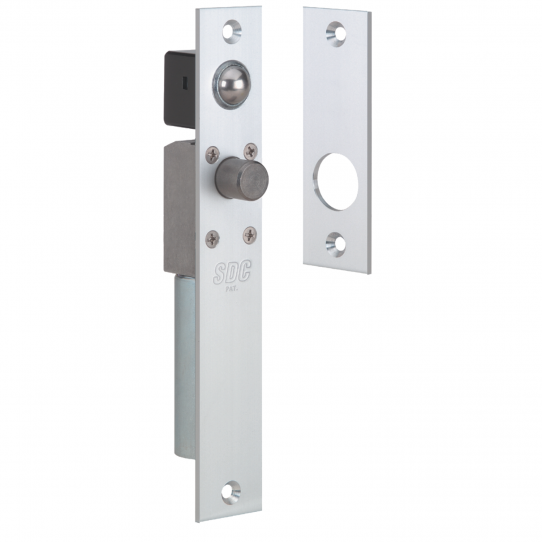

SDC 1490/2490 Spacesaver Extra Narrow Electric Bolt Lock

$310.10 $443.00

Overview

The Spacesaver®, first designed and patented by SDC, is a fundamental innovation in electric locking technology for access control applications.

The 1490A is locked when energized.
Recommended for safety applications. It is intended that the door unlock automatically when power is interrupted by the access control, power failure or signal from a fire life safety system.
• Bolt Throw 1/2 inch (12.7mm)

The 2490A is locked when de-energized and unlocked when energized.
Recommended for security applications only, it is intended that the door automatically locks when power is interrupted by the access control or power failure.
• Bolt Throw 1/2 inch (12.7mm)

Made in the USA

More Info +


Select Model:
Specify Finish (V - Aluminum Standard, all other special order 3-weeks):

Qty

Product Details

Product Overview

The Spacesaver®, first designed and patented by SDC, is a fundamental innovation in electric locking technology for access control applications.

The stainless steel bolt projects at right angles to the lock mechanism, allowing installation of Spacesaver® locks, by means of a simple cutout, in virtually any standard 1.5 inch frame, or in most door lock stiles. With the entire lock concealed, esthetic acceptability is complete, security is greater and installation in old or new construction is fast, easy and economical.

Models

  • 1490AIV Fits 1-1/2 inch frame (non UL), failsafe
  • 2490AHV Fits 1-1/2 inch frame (non UL), failsecure

Field Adjustable Auto-Relock Switch

The automatic relock switch keeps the bolt retracted while the door is open. The door depresses the ball switch assembly on closure, causing the bolt to project automatically locking the door. In addition, the ball switch assembly is bi-directional, permitting the locks to be used on swinging and sliding doors.

The auto relock assembly is field adjustable to compensate for wide door gap.

Specifications

  • Face Plate: 8 inch L x 1-1/4 inch W x 1/8 inch D (203.2 x 31.75 x 3.175mm)
  • Strike: 4 inch L x 1-1/2 inch W x 1/8 inch D (101.6 x 38.1 x 3.175mm)
  • Frame Inner Dimension Requirements: 8 inches L x 1-1/4 inches W x 1-3/8 inches D (203.2 x 31.75 x 31.75mm)
  • Bolt Material: Stainless Steel
  • Bolt Diameter: 5/8 inches (15.875mm)
  • Bolt Throw: 1/2 inch (12.7mm)
  • Mounting Tabs: Two aluminum mounting tabs are provided for easy lock installation.
  • 1490 Failsafe
    • 0.45amp @ 24VDC Continuous Duty
    • 0.9amp @ 12VDC Continuous Duty
  • 2490 Failsecure
    • 0.45amp @ 24VDC Continuous Duty
    • 0.9amp @ 12VDC Continuous Duty

Finish

  • V 628 Clear Anodized Aluminum (std)
  • Special finishes:
    • C 605 Bright Brass
    • D 606 Dull Brass
    • F 611 Bright Bronze
    • G 612 Dull Bronze
    • H 613 Oil Rubbed Bronze
    • P 625 Bright Chrome
    • Q 626 Dull Chrome
    • U 630 Satin Stainless Steel
    • Y 335 Black Anodized

Options

Door and lock status monitoring sensors are installed and concealed in the lock. The need for additional door and frame preparations is eliminated. Magnetic bolt status sensor is behind the faceplate to inhibit tampering. Applications include: Remote Door and Lock Status; Mantraps; Air/Clean Rooms; Communicating Bathrooms; Door Hold Open Alarms and CCTV Activation.

  • Magnetic Bolt Status Switch SPDT 0.25amp @ 30VDC
  • Indicates bolt locked and bolt unlocked
  • Mechanical Door Position Switch SPDT 5amps @ 30VDC
  • Integral to the auto relock ball switch assembly. Indicates, door closed and door open. Recommended for minimum security applications only
  • BR64XL Rectifier for AC operation
Maglocks.com Rating
Better
Manufacturer
SDC Security
Manufacturer Warranty
2 Year
Model Number
1490/2490
Power Requirements
24VDC/12VDC
Status Monitor
Optional
