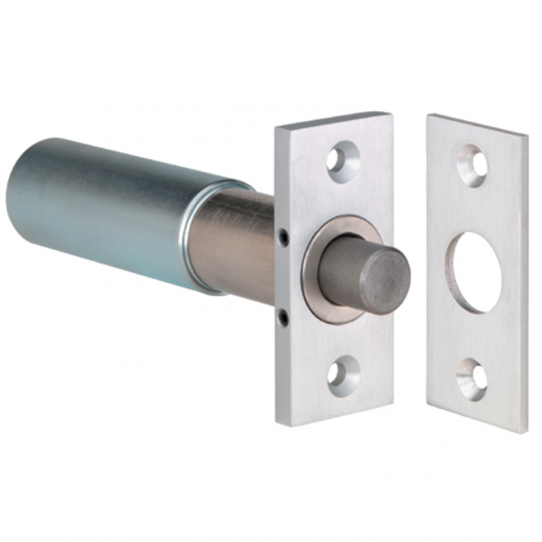

SDC 110IV and 210HV Mortise Bolt Locks
$159.60
$228.00
Product Overview
The solenoids are the strongest found in the industry for commercial or industrial grade applications. The power and strength of the solenoids far surpasses any competitive models.
5 inch depth required
Model
- 110IV: 2-3/4 inch x 1-1/4 inch Face plate, less auto relock switch, Failsafe - Locked when energized
- 210HV: 2-3/4 inch x 1-1/4 inch Face plate, less auto relock switch, Failsecure - Unlocked when energized
Electrical Specifications
- Voltage: Dual 12/24VDC 900mA@ 12VDC 450mA @ 24VDC
Mechanical Specifications
- Finish: 628 Anodized Aluminum
- Faceplate: 2-3/4 inch H x 1-1/4 inch W x 0.25 inch D (69.85 x 31.75 x 6.35mm)
- Strike: 2-3/4 inch H x 1-1/4 inch W x 0.125 inch D (69.85 x 31.75 x 3.175mm)
- Bolt: 5/8 inch dia. x 1/2 inch throw (15.87mm x 12.7mm)
- Depth: 5 inch (127mm)
Specifications
- Model: 110IV (failsafe) and 210HV (failsecure) Mortise Bolt Locks
- Manufacturer: SDC
- Voltage: 12 VDC or 24 VDC (dual voltage)
- Current Draw: 900 mA at 12 VDC; 450 mA at 24 VDC
- Fail Mode: 110IV failsafe (locked when energized); 210HV failsecure (unlocked when energized)
- Faceplate: 2-3/4 inches H x 1-1/4 inches W x 0.25 inch D (69.85 mm x 31.75 mm x 6.35 mm)
- Strike: 2-3/4 inches H x 1-1/4 inches W x 0.125 inch D (69.85 mm x 31.75 mm x 3.175 mm)
- Bolt: 5/8 inch diameter x 1/2 inch throw (15.87 mm x 12.7 mm)
- Depth Required: 5 inches (127 mm)
- Auto Relock Switch: Not included
- Finish: 628 anodized aluminum
- Warranty: 2 years
Also Known As:
SZ-110IV, SDC-110IV, SZ-210IV, SDC-210IVFinish:
AluminumManufacturer:
SDC SecurityManufacturer Warranty:
2 YearModel Number:
110/210Power Requirements:
24VDC/12VDCStatus Monitor:
Not AvailableUPC Code:
712905103303
1 Question asked on SDC 110IV and 210HV Mortise Bolt Locks •
Q
Thomas • 03/23/2023, 6:05:49 PM
When energized is in open or closed position
A
03/24/2023, 10:45:08 AM
These locks are available in two different configurations depending on your application. The 110IV lock is "fail-safe" and requires power to lock. The 210HV lock is "fail-secure" and requires power to unlock. To go over the operation of these locks in further detail or for help designing a complete system, please give us a call at 1-866-500-5625
