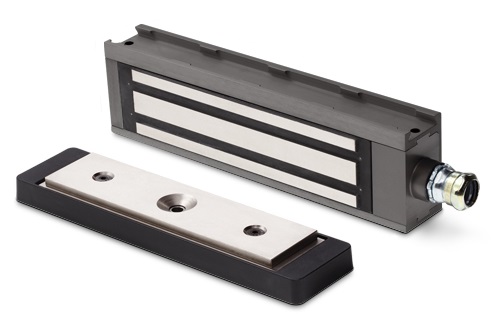

Schlage M490G Electromagnetic Gate Lock, 1500lbs.

$548.00 $685.00

Overview

The Schlage M490G electromagnetic gate lock is a weather resistant electromagneticlock with 1500 lbs of holding force, designed for use on all types of sliding and swinginggates. As a high security magnetic lock, it can accommodate misalignment problemswhile supplying superior holding force.

More Info +


Qty

Product Details

The Schlage M490G electromagnetic gate lock is a weather resistant electromagneticlock with 1500 lbs of holding force, designed for use on all types of sliding and swinging gates. As a high security magnetic lock, it can accommodate misalignment problems while supplying superior holding force.

A 1⁄2" compression connector is provided for installation of 1⁄2" EMT conduit, insuringprotection of hook-up wiring from weather and vandalism. Heavy-duty plating resistscorrosion of mating surfaces, providing a low maintenance locking device.

Standard Features

  • 1500lbs Holding Force
  • Magnetic Bond Sensor (MBS) and Gate Status Monitor (DPS)
  • Field selectable 12/24VDC
  • Built-in voltage spike suppressor
  • Electroless nickel plated finish
  • Universal Mounting Brackets
  • 1/2" EMT compression fitting
  • Two Foot wire leads
  • Weather resistant with exterior use
  • Accomdates gate misalignment
  • No moving parts - Low maintenance

Mechanical Specifications

  • Holding Force: 1500lbs
  • Lock: 11" L x 3" H x 1-3/4" W

Eletrical Specifications

  • Voltage: 12/24VDC
  • Current: .65A @ 12VDC; .35A @ 24VDC

Weight

  • 14 lbs. (approximate)

Operating temperature

  • -35° to 66°C (-31° to 151° F)

Certifications

  • ANSI/BHMA A156.23 outdoor rated
  • Meets or exceeds ANSI/BHMA A156.23 standard for Grade 1 locks
Finish
Aluminum
Maglocks.com Rating
Best
Manufacturer
Schlage
Manufacturer Warranty
Lifetime
Model Number
M490G
Power Requirements
24VDC/12VDC
Status Monitor
Optional
