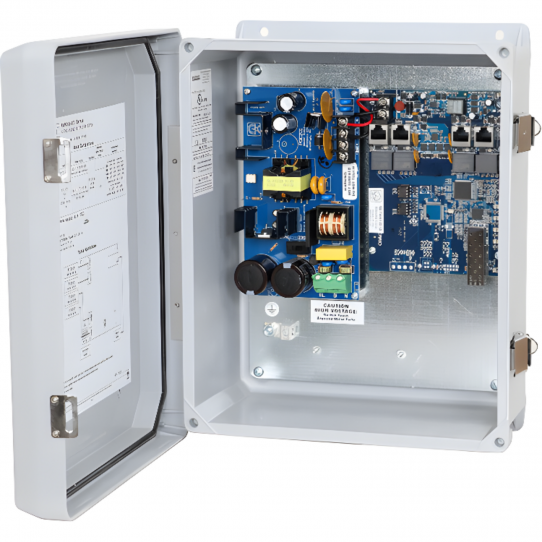

WayPoint3 Outdoor Power Supply 12/24VDC, 2.5amp

Product Overview

WayPoint-3 DC Outdoor Power Supply/Charger provides 12VDC or 24VDC and is designed to be conveniently located where power is required.

Technical Specifications

Input:

• Input: 115VAC, 60Hz, 0.95 amp. or 230VAC, 50Hz, 0.6 amp.

Output:

• 12VDC or 24VDC selectable output.
• 2.5 amp continuous supply current.
• Filtered and electronically regulated output.
• Thermal overload and short circuit protection.

Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries.
• Maximum charge current 500mA.
• Automatic switch over to stand-by battery.

Electrical:

• Operating Ambient Temperature: -20° C to 50° C.
• BTU/Hr.:
• - 12VDC: 15.36 BTU/Hr.
• - 24VDC: 30.71 BTU/Hr.
• System AC input VA requirement:
• - 115VAC: 109.25VA.
• - 230VAC: 138VA.

Features:

• AC and DC power LED indicators.
• Ease of installation saves time and eliminates costly labor.
• Includes battery leads.

Dimensions and Weight

Enclosure:

• NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
• Accommodates up to two (2) 12VDC/12AH batteries.
• Dimensions 13.31 inches H x 11.31 inches W x 5.59 inches D (338mm H x 287mm W x 142mm D)

Weights (approximate):

• Product Weight: 9.2 Lbs (5.19 kg)
• Shipping Weight: 10.5 Lbs (5.78 kg)

Finishes

• White Enclosure

Specifications

• Input: 115 VAC, 60 Hz, 0.95 A or 230 VAC, 50 Hz, 0.6 A
• Output: Selectable 12 or 24 VDC, 2.5 A continuous
• Battery Charger: Sealed lead acid or gel; maximum charge current 500 mA; battery leads included
• Protection: Thermal overload and short circuit
• Operating Temperature: -20°C to 50°C ambient
• Heat Output: 12 VDC, 15.36 BTU/hr; 24 VDC, 30.71 BTU/hr
• System AC Input VA: 115 VAC, 109.25 VA; 230 VAC, 138 VA
• Enclosure: NEMA 4/4X, IP66-11 outdoor, white; holds up to two 12 VDC/12 AH batteries
• Dimensions: 13.31 in H x 11.31 in W x 5.59 in D (338 x 287 x 142 mm)
• Weight: Product 9.2 lbs (5.19 kg); shipping 10.5 lbs (5.78 kg)
• Warranty: Lifetime
