Schlage, 623RDEX Mushroom Button, Red, Push to Exit, UL294

Product Overview

Schlage® heavy-duty pushbuttons are used to control the ingress and/or egress of a door. The 620 Series pushbuttons are easy to install and operate. They offer significant installer-friendly innovations such as screw terminal connections for the momentary action models.

Product Details

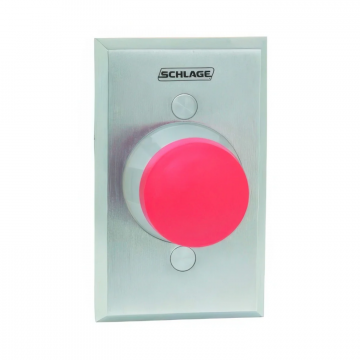

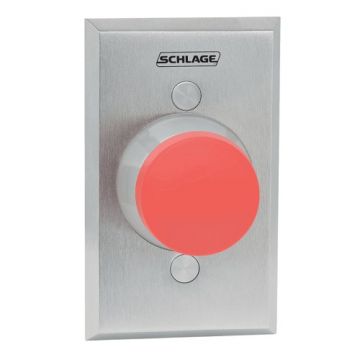

The Locknetics 623-RD-EX is a 1-5/8 inch red mushroom pushbutton on a single gang faceplate with a 630 satin stainless finish. The pushbutton has PUSH TO EXIT printed in white. Locknetics pushbuttons are used to control the ingress and/or egress of a door. The 620 Series pushbuttons are easy to install and operate. Their standard and narrow stile plates offer ultimate flexibility. Locknetics 620 Series pushbuttons also offer significant installer-friendly innovations such as screw terminal connections for the momentary action models and easy-to-install L2/ILL optional PC board, offering backlit illumination for the cone with green and red LEDs for monitoring purposes. Additional options include delayed action, double pole double throw a heavy-duty plate with several architectural finishes and extreme-duty pushbuttons.

Specifications

• Button: 1-5/8 in red mushroom, "PUSH TO EXIT" printed in white
• Mounting plate: heavy duty single gang
• Contact: momentary, SPDT, 3 A @ 30 VDC
• Model: 623RD-EX, finish 630 satin stainless
• Listing: UL 294
