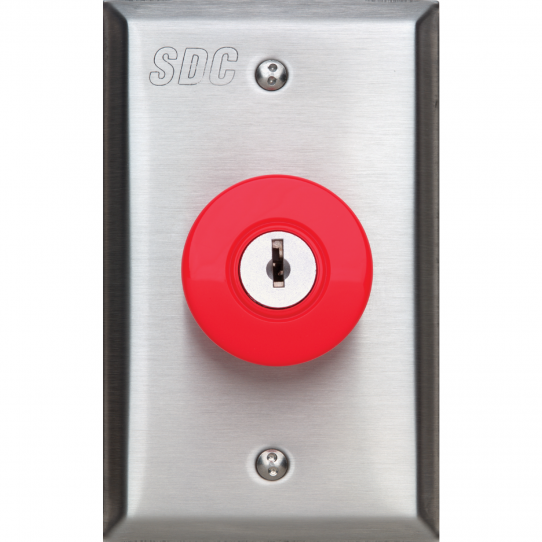

SDC 432K Key Reset Mushroom Button

$189.00 ~~$270.00~~

The SDC 423K latches when depressed and must be reset with the built-in-key. Applications include alarm, panic alarm and emergency door release where systems are restored by authorized personnel only.

Features:

1.5 inch Mushroom button
Red Button Standard
Latching key reset DPST contact

Select Mount Type: 432KR - Single Gang +$0.00 432KNR - Narrow +$0.00

Specify Finish (U - Stainless Standard, all other special order 4-weeks):

Optional Indicator Lights:

Qty

SDC 432K Latching key reset 1.5 inch Mushroom Button

Product Overview

These heavy-duty industrial series switches incorporates a 1.5 inch round mushroom with heavy-duty water resistant contacts and are ideal for high frequency use.

Specifications

20-gauge stainless steel faceplate
1.5 inch mushroom button
Contact: DPST 6amp @ 30VDC
Screw terminal wire connection

Models

432KUR - Single Gang Mount, Latching/ key reset DPST, U standard dull stainless finish
432KNUR - Narrow Mount, Latching/ key reset DPST, U standard dull stainless finish
*Special order finish options available, please call for current lead times

Options

Red Button
Green and Red LED Status Indicators
Special finishes, Chrome, Brass, Bronze, Dark Bronze

Also Known As:

SZ-432KUR, SDC-432KUR

Manufacturer:

SDC Security

Manufacturer Warranty:

2 Year

Model Number:

432KR

Mount:

Narrow,Single Gang

Operation Momentary Timer Maintained:

Alternate Action

Power Requirements:

24VDC/12VDC

Type:

Mushroom

UPC Code:

712905167695

Datasheet PDF

Installation PDF

Pricelist PDF

1 Question asked on SDC 432K Key Reset Mushroom Button • Ask a Question

Q Jay Gutierrez • 05/17/2023, 12:56:42 PM I AM LOOKING FOR 4POLE SINGLE THROW LATCHING MUSHROOM BUTTON WITH KEY

A 05/18/2023, 10:51:42 AM The 432KR Mushroom button features DPST (1) N/C & (1) N/O contacts. These contacts can be wired to a separate relay (Example: RBSN) to allow for additional functionality. To go over your specific application in further detail please give us a call at 1-866-500-5625
