Securitron PB2 Push To Exit Button

Product Overview

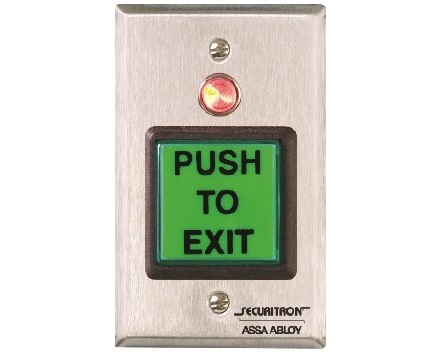

The model PB2 is a spring loaded momentary 2 inch square, exit button, mounted on a stainless steel single gang outlet box cover. The SPDT contacts switch when the button is depressed and return when it is released.

The contacts are UL listed with 5-AMP capacity. The indicator LED is mounted above the button and the switch LED illuminates the button itself.

Features

• Includes switchable green, red and blue ADA lenses
• Red LED on plate where applicable
• 5amp rated contacts
• Stainless Steel single gang plate: 4.5 inch x 2.75 inch [114mm x 70mm]

Model

• PB2: Push-To-Exit Button - Momentary, Single Gang, Illuminated, Grn/Red/Handicap

Specification

• 29mA at 12VDC
• 40mA at 24VDC
• 5A rated SPDT relay

Dimensions

• Stainless Steel single gang plate: 4.5 inch x 2.75 inch [114mm x 70mm]

Specifications

• Model: PB2 Push-To-Exit Button
• Manufacturer: Securitron
• Button: Momentary, spring loaded, 2 inch square, illuminated
• Contacts: SPDT, 5 A rated, UL listed
• Current Draw: 29 mA at 12 VDC; 40 mA at 24 VDC
• Voltage: 12 VDC or 24 VDC
• Plate Size: Stainless steel single gang, 4.5 inches x 2.75 inches (114 mm x 70 mm)
• Lenses: Switchable green, red and blue ADA lenses included
• Finish: Stainless steel
• Warranty: Lifetime
