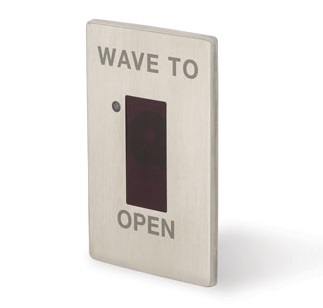

Locknetics, WS-200 Touchless Wave Switch

PRODUCT OVERVIEW

Locknetics, WS-200 Touchless Wave Switch

The touchless wave sense series is ideal for request-to-exit situations where a sanitary environment is desired such as healthcare facilities, restaurants, restrooms or labs.

FEATURES

• Infrared sensor adapts to any environment
• Sensor detection range up to approximately 4 inches
• Dual LED (Red/Green) indicates inactive/active status
• Time delay settable for 0.5, 5, 10 or 20 seconds
• Single gang stainless steel, weather resistant and vandal resistant faceplate

MODEL

• WS-200 - Wave Sense Switch, Wave To Open, Single Gang Plate, Satin Stainless Steel

SPECIFICATION

• SPDT Relay, 2A/30VAC
• Operating temp: -10 degrees F to +130 degrees F

DIMENSIONS

• 4-1/2 inches L (114 mm) x 2-3/4 inches W (70 mm) ANSI size faceplate

Specifications

• Model: WS-200 Touchless Wave Switch
• Manufacturer: Locknetics
• Technology: Infrared touchless wave sensor
• Sensing Range: Up to approximately 4 inches
• Voltage: 12 VDC or 24 VDC
• Relay: SPDT, 2 A at 30 VAC
• Time Delay: Settable, 0.5, 5, 10 or 20 seconds
• Indicator: Dual LED (red/green) for inactive/active status
• Operating Temperature: -10° F to +130° F
• Dimensions: 4-1/2 inches L x 2-3/4 inches W (114 mm x 70 mm), ANSI size faceplate
• Faceplate: Single gang stainless steel, weather resistant and vandal resistant
• Finish: Satin stainless steel
• Use: Request to exit; weather resistant
