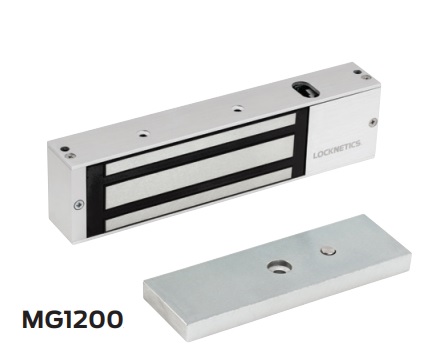

Locknetics, MG1200 Electromagnetic Lock 1200lbs

Product Overview

Locknetics, MG1200 Electromagnetic Lock 1200lbs

The MG Series of surface mount electromagnetic locks provides a cost competitive, slim profile and dependable solution for a variety of applications.

Features

• Bi-colored LED bond sensor included
• Removable PCB for easy installation
• Built-in voltage spike suppressor
• Field Selectable 12/24 VDC
• 12VDC at 0.5A, 24VDC at 0.26A

Model

• MG1200 - standard 1200lb model
• MG1200DT - monitored 1200lb model with Door Status Monitor and Adjustable Re-lock Timer (0-90sec adjustable)

Specification

• UL10C
• UL294

Dimensions

• Lock: 10-1/2 inches L x 2-7/8 inches H x 1-1/2 inches D
• Armature: 7-1/3 inches L x 2-2/5 inches H x 3/5 inches D

Options

• MZBK1200 - Z bracket kit, required to install maglock on an in-swing door (sold separately)

Specifications

• Models: MG1200 (standard); MG1200DT (door status monitor and adjustable re-lock timer, 0-90 seconds)
• Holding Force: 1,200 lbs
• Voltage/Current: 12/24 VDC field selectable; 0.5 A at 12 VDC, 0.26 A at 24 VDC
• Lock Dimensions: 10-1/2 in L x 2-7/8 in H x 1-1/2 in D
• Armature Dimensions: 7-1/3 in L x 2-2/5 in H x 3/5 in D
• Features: Bi-colored LED bond sensor included; removable PCB; built-in voltage spike suppressor
• Listings: UL 10C; UL 294
• Finish: Stainless steel
• Option: MZBK1200 Z bracket kit, required for in-swing doors (sold separately)
