KP-300 Vandal Resist, Weather Mullion PIN/Prox Reader
Overview

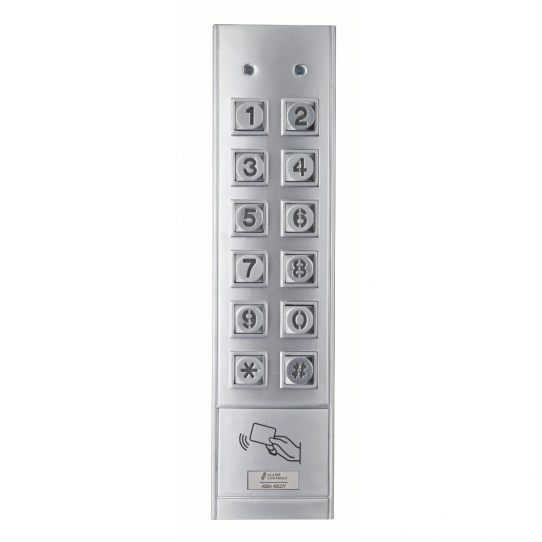

KP-300 Vandal Resistant, Weatherproof Mullion Mount PIN/Prox Reader
Great for mounting on a narrow mullion where space is limited, the KP-300 is vandal resistant and weatherproof.
Self-contained, narrow stile digital keypad designed for pedestal/mullion mounting.
Vandal resistant and weather resistant with durable metal keys and housing, suitable for indoor and outdoor applications.
Features:
- Fully programmable from the keypad
- Less than 2 inch wide
- Card only, Pin only or Card + Pin
- Two programmable SPDT relay contacts -Output 1 Capacity of 1000 Pins and/or cards -Output 2 Capacity of 100 Pins and/or cards
- Backlit keys for visibitly in dark areas
- 50 Visitor codes, programmable for one time use or time limit
- Built-in tamper switch, built-in buzzer
- Lifetime Limited Warranty
(2) Free Proximity cards included with purchase
Product Details
Kp-300 Vandal Resistant Weather Mullion Pin/Proxy Reader
Self-contained, narrow stile digital keypad designed for pedestal/mullion mounting.
Vandal resistant and weather resistant with durable metal keys and housing, suitable for indoor and outdoor applications.
- Weatherproof & Vandal-Proof Digital Keypad
- Fully programmable from keypad
- Operated on 12VDC nominal, 11-15 VDC, operating current 95mA
- Mullion surface mount die cast zinc alloy housing, weather-proof to IP65 standard
- Two programmable S.P.D.T. relay outputs
- Output 1: capacity of 1000 user codes and/or codes
- Output 2: capacity of 100 user codes and/or codes
- Die cast metal keys with audible and visible key press
- 50 visitor codes, programmable for one time use or with time limit
- Built-in tamper switch, built-in buzzer
- LEDs indicated keypad status
- Operating temperature: -20 C to +70 C
- Supplied with 2 EM cards: Model EM-10 is a package of 10 additional cards
