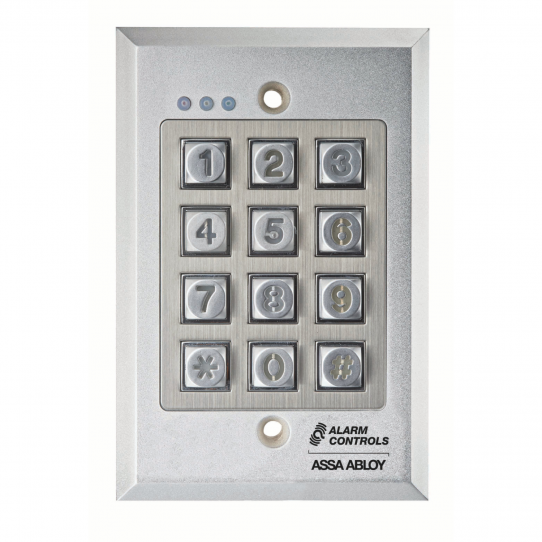

KP-200 Surface, Recess Mount Weatherized Digital Keypad
Overview
Model KP-200 is a self-contained vandal resistant digital keypad. This dual-relay output keypad is suitable for residential, industrial, and commercial installations.
It is compatible with all electric locking devices. Durable backlit metal keys and a rugged metal housing protect the keypad from harsh environments.
Product Details
- FULLY PROGRAMMABLE FROM THE KEYPAD
- OPERATES ON 12 OR 24 VOLTS AC OR DC, AUTO VOLTAGE SENSING
- HEAVY DIE CAST FLUSH MOUNT HOUSING WITH BRUSHED 302 STAINLESS STEEL FACE PLATE
- MOUNTS ON STANDARD SINGLE GANG ELECTRICAL BOX
- METAL KEYS ARE BACKLIT FOR VISIBILITY IN DARK AREAS
- BACK LIGHTING IS ADJUSTABLE
- ONE PROGRAMMABLE S.P.D.T. 5AMP. RELAY OUTPUT
- ONE PROGRAMMABLE NPN TRANSISTOR OUTPUT
- OUTPUT 1: 100 MULTI-USER CODES, CODE LENGTH FROM 4 TO 8 DIGITS
- OUTPUT 2: 10 MULT-USER CODES, CODE LENGTH FROM 4 TO 8 DIGITS
- BUILT-IN TAMPER SWITCH, BUILT-IN BUZZER
- REQUEST TO EXIT INPUT WITH RELAY TIME FROM 1 TO 999 SECONDS
- RED, YELLOW AND GREEN LEDS INDICATE THE CONDITION OF THE KEYPAD
- LIFETIME LIMITED WARRANTY
Specifications
OPERATING VOLTAGE: 12 OR 24 VOLTS AC/DC, AUTO VOLTAGE SENSING
ACTIVE CURRENT DRAW : 100 MA. @ 12 VOLTS, 120 MA. @ 24 VOLTS
IDLE CURRENT: 10 MA. MAX. @ 12 VOLTS, 22 MA. MAX. @ 24 VOLTS
OUTPUT 1 CONTACT RATING: S.P.D.T., 5A. @ 28 VDC/120 VAC
OUTPUT 2 NPN OPEN COLLECTOR: 100 MA. SINK @ 24 VDC MAX.
TAMPER SWITCH CONTACTS: N/C DRY CONTACTS, 50 MA. MAX.
OPERATING TEMPERATURE: -4F TO 158F, ( -20C TO +70C )
AMBIENT HUMIDITY: 5 TO 95% RELATIVE HUMIDITY
ENVIRONMENT: CONFORMS TO IP66 CODE, DUSTPROOF AND WATERPROOF FROM POWERFUL WATER SPRAY
EGRESS INPUT: NORMALLY-OPEN CONTACTS
100 USER CODES, OPERATES OUTPUT 1, CODE LENGTH FROM 4 TO 8 DIGITS
10 USER CODES, OPERATES OUTPUT 2, CODE LENGTH FROM 4 TO 8 DIGITS
KEYPAD LOCKOUT FEATURE, AFTER 10 FALSE CODE ENTRYS KEYPAD LOCKS FOR 30 SECONDS
RELAY CAN BE SET FOR MOMENTARY OR LATCHING MODE
ADJUSTABLE RELAY ON TIME FROM 1 TO 999 SECONDS
KEYPAD BEEPER CAN BE SILENCED IF REQUIRED
KEYPAD CAN BE PROGRAMMED FOR OUTPUT ANNUNCIATION
DIE CAST METAL BACKLIT KEYS FOR VISIBILITY IN DARK AREAS
FLUSH MOUNT, MOUNTS IN STANDARD SINGLE GANG ELECTRICAL BOX
