Gym Assistant Single Door Magnetic Lock Kit

Gym Assistant Single Door Magnetic Lock Kit



Single Door Magnetic Lock Kit with battery backup for use with GymAssistant access control equipment

For situations where modification to the door locking hardware or jamb is not permitted this magnetic lock kit (600lb or 1200lb magnetic lock) offers great flexibility.

Kit Includes:
• (1) 600lb or 1200lb Maglock (select below)
• (1) 463U Illuminated "Push to Exit" button
• (1) PS520W Request to exit motion detector
• (1) MC-1 Power Supply with battery backup

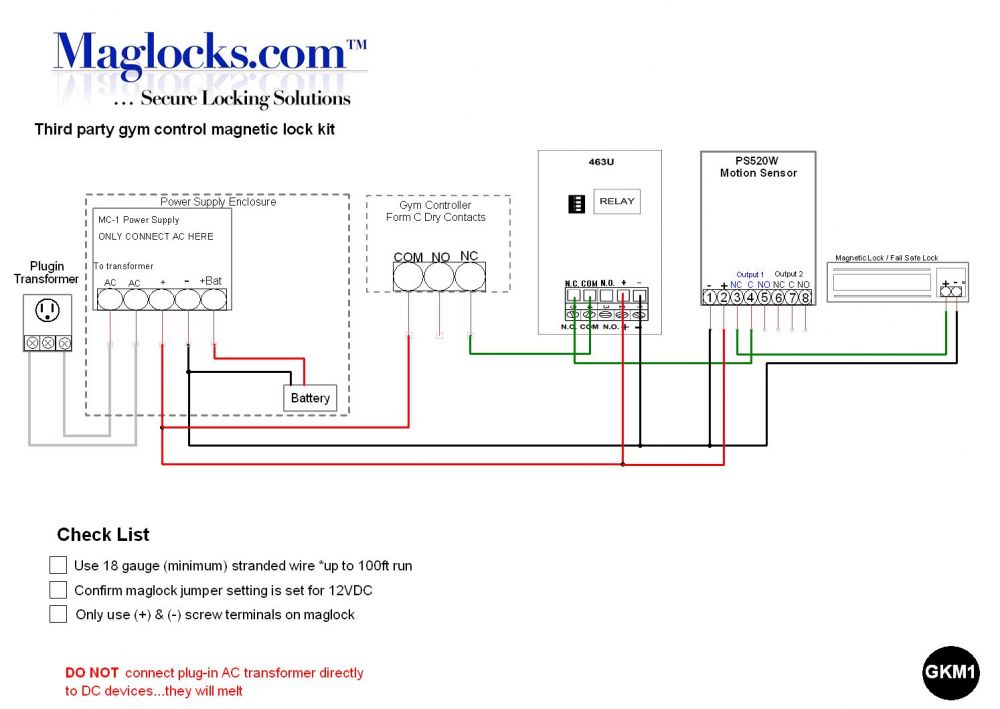

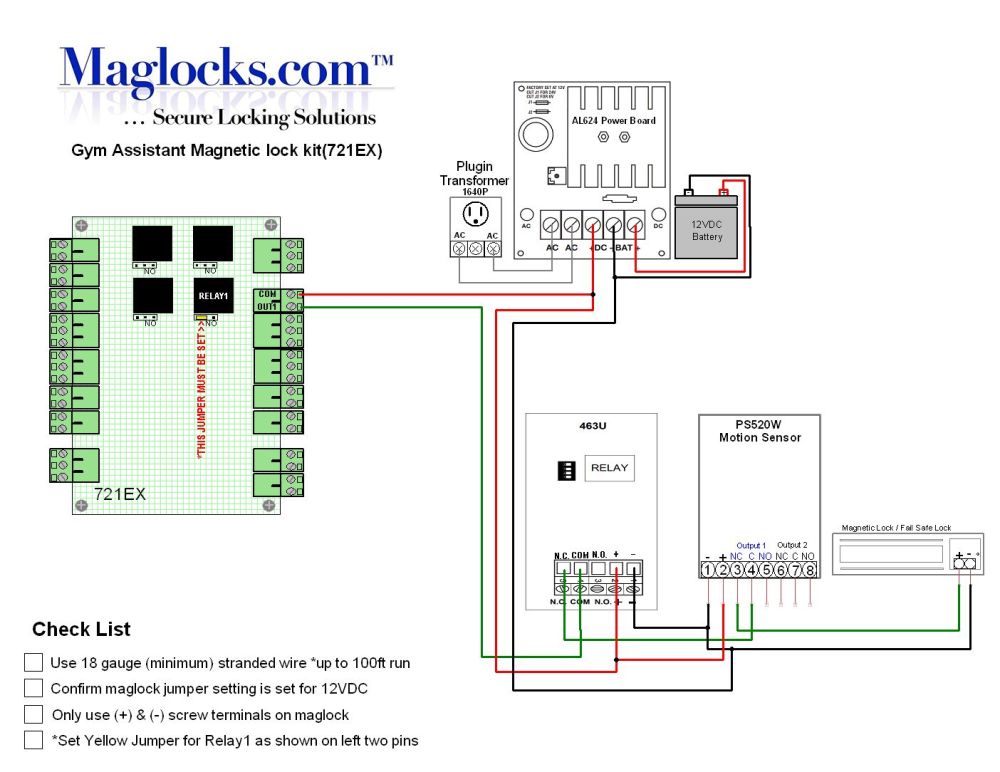

• Complete Wiring Diagram
• 100% Free Tech Support.
We recommend checking with your local Fire Marshal/Authorities to verify exit devices are up to your locale's code.

If you have any questions regarding which kit will be best for your project please contact us Toll Free at 1-866-500-5625

More Info +

Select Locking Device:
Wire (select a length):


Product Details

Product Overview

Single door magnetic lock kit complete with magnetic lock of your choice, motion sensor, exit button and power supply. When connected to the Gym Assistant software the magnetic lock will keep your doors secure while the included exit devices (motion sensor and push button) always allow for safe egress.

Entry through the door is easily programmed using the Gym Assistant software and equipment. An extra remote release button can also be added above to quickly let visitors in who may not be enrolled in the Gym Assistant software.

Combined with our custom 1.2amp linear output power supply with battery backup this kit is easy to install on most doors and requires no permanent changes to the current door locks. If you have any questions regarding this kit please contact us at 1-866-500-5625


  • Power Supply Specifications: 1.2amp at 12VDC
  • Battery Backup: 5amp/hr Rating
Manufacturer Warranty
2 Year
Model Number
Gym Assistant Single Maglock kit
Power Requirements
