EN400 Indoor/Outdoor, Burglary, Fire Rated Electric Strike

Product Overview

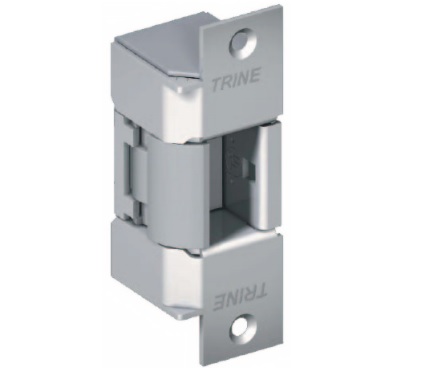

The only UL Indoor/Outdoor, Burglary, and Fire Rated Electric Strike in the industry. For new or replacement installations in wood or metal jambs. Use with cylindrical locksets, mortise locks without dead bolts, and mortise exit devices with up to 7/8 inch throw.

Product Features

• Superior Strength - 2,000+ lbs UL tested
• Superior Life - durability of 1,000,000+ life cycles
• Outdoor UL rating allows for use anywhere, especially good for gates
• Grade 1 Strike - One piece locking mechanism
• Left and Right handing is field reversible

Models

• EN400-12AC-LH-US32D
• EN400-12AC-RH-US32D
• EN400-12DC-LH-10B
• EN400-12DC-LH-US32D
• EN400-12DC-RH-US32D
• EN400-24AC-LH-US10B
• EN400-24AC-LH-US32D
• EN400-24AC-RH-US32D
• EN400-24DC-LH-US10B
• EN400-24DC-LH-US32D
• EN400-24DC-LH-US4
• EN400-24DC-RH-US10B
• EN400-24DC-RH-US32D

Specifications

• .28amps @ 12VDC
• .15amps @ 24VDC
• .70 current @ 12VAC
• .37 current @ 24VAC

Dimensions

• 4-7/8 inches L x 1-1/4 inches W x 3/32 inches D faceplate
• 1-11/16 inches strike body depth
